Запчасти Case CX160B (09-30) - CAB - WINDOW, FRONT (09) - CHASSIS/ATTACHMENTS

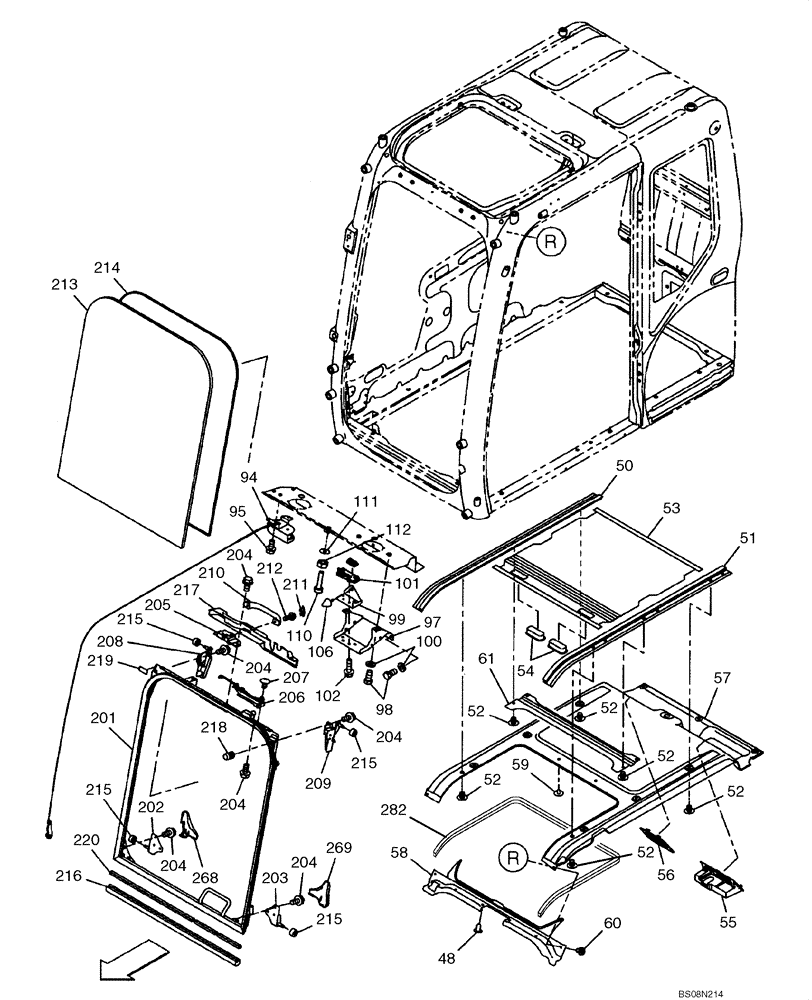

Схема запчастей Case CX160B - (09-30) - CAB - WINDOW, FRONT (09) - CHASSIS/ATTACHMENTS
204
99
215
214
59
269
52
102
204
58
212
201
52
219
111
106
97
57
209
268
52
215
208
94
211
207
218
217
204
60
210
100
206
50
98
95
53
112
204
56
213
55
48
205
204
202
216
204
282
101
220
52
51
52
61
215
110
52
54
203
215

Артикул

Название

Примечание

Количество

KHN16502

CAB

Incl. 48 - 112, 268, 269; Also Includes Parts On Figures 04-10, 09-26, 09-27, 09-29 (Includes Door)

1шт.

KHN16502

CAB

Incl. 48 - 112, 268, 269; Also Includes Parts On Figures 04-10, 09-26, 09-27, 09-29

1шт.

48

KHN14380

CLIP

7шт.

50

KHN14540

SLIDE GUIDE

With Sun Visor

1шт.

50

KHN14560

PLATE

Without Sun Visor

1шт.

51

KHN14550

SLIDE GUIDE

With Sun Visor

1шт.

51

KHN14560

PLATE

Without Sun Visor

1шт.

52

KHN14570

SCREW

6шт.

53

KHN14580

SUN VISOR

1шт.

54

KHN14590

HANDLE

2шт.

55

KHN14600

COVER

1шт.

56

KHN14610

SIEVE

1шт.

57

KHN14620

SLIDING PAD

1шт.

58

KHN14630

COVER

1шт.

59

KHN14640

CLIP

11шт.

60

KHN14650

SCREW

2шт.

61

KHN14680

BRACKET

With Sun Visor

1шт.

61

KHN14670

BRACKET

Without Sun Visor

1шт.

94

KHN15860

SPRING

1шт.

95

KHN15690

BOLT

2шт.

97

KHN15880

BRACKET

1шт.

98

KHN15890

BOLT,Spcl

4шт.

99

KHN15900

BRACKET

1шт.

100

KHN15910

WASHER

4шт.

101

KHN15920

STRIKER

STRIKER

1шт.

102

KHN18890

BOLT,Spcl, Hex, M6 x 20mm

Replaces KHN2686

3шт.

106

KHN16330

STOP LOCK

1шт.

111

KHN16000

WASHER

1шт.

112

KHN16010

SPECIAL NUT

1шт.

KHN13680

WINDOW ASSY

Incl. 201 - 220

1шт.

110

KHN15990

STOP LOCK

1шт.

201

KHN15660

WINDOW FRAME

1шт.

202

KHN15670

STAY

1шт.

203

KHN15680

STAY

1шт.

204

KHN15690

BOLT

14шт.

205

KHN15700

LOCK

1шт.

206

KHN15710

LEVER

1шт.

207

KHN15720

SCREW

2шт.

208

KHN15730

LINK

1шт.

209

KHN15740

LINK

1шт.

210

KHN15750

HANDLE

1шт.

211

KHN15760

CAP

2шт.

212

KHN15770

BOLT,Flng, M6 x 20mm

2шт.

213

KHN15780

WINDSHIELD

1шт.

214

KHN15790

SEAL

1шт.

215

KHN15800

ROLLER

4шт.

216

KHN15810

SEAL

1шт.

217

KHN15820

COVER

1шт.

218

KHN15830

STOP LOCK

1шт.

219

KHN15840

SEAL, GLASS

1шт.

220

KHN15850

SEAL

1шт.

268

KHN16220

COVER

1шт.

269

KHN16230

COVER

1шт.

282

KHN14690

SEAL

1шт.

Выбрано товаров: 54
