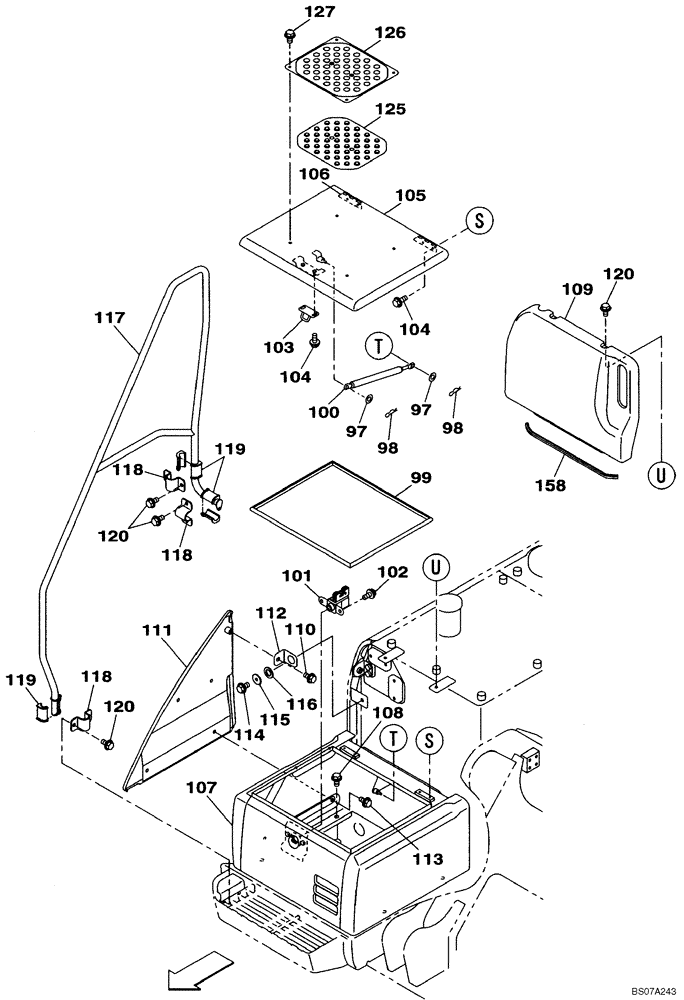

Запчасти Case CX160B (09-08) - STORAGE BOX - INSULATION (09) - CHASSIS/ATTACHMENTS

97

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

98

153077A1

COTTER PIN

2шт.

99

KTN1391

SEAL, RUBBER

RUBBER SEAL

1шт.

100

KHN13720

GAS STRUT

1шт.

101

KHN12730

LOCK

1шт.

102

166351A1

BOLT,Sems, M10 x 20mm

2шт.

103

KHN12740

SUPPORT

1шт.

104

166350A1

BOLT

2шт.

105

KNN10380G1

COVER

Incl. 106

1шт.

106

KHN3390

HINGE

2шт.

107

KNN10370G1

COVER

1шт.

108

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

109

KNN10390G1

COVER

Replaces KNN10390

1шт.

110

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

111

KHN12710

COVER

1шт.

112

KHN12720

SUPPORT

1шт.

113

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

114

166352A1

BOLT

1шт.

115

162409A1

WASHER

1шт.

116

KHN2061

WASHER

1шт.

117

KHN12681B1

STAY

Replaces KHN12680, KHN12681

1шт.

118

KHN12690

COLLAR

3шт.

119

KHN12700

COLLAR

6шт.

120

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

125

KHN10940

RUBBER PAD

1шт.

126

KHN13510B1

COVER

1шт.

127

KHN13540

BOLT,Spcl

4шт.

158

KHR14920

SEAL PROTECTION

1шт.
