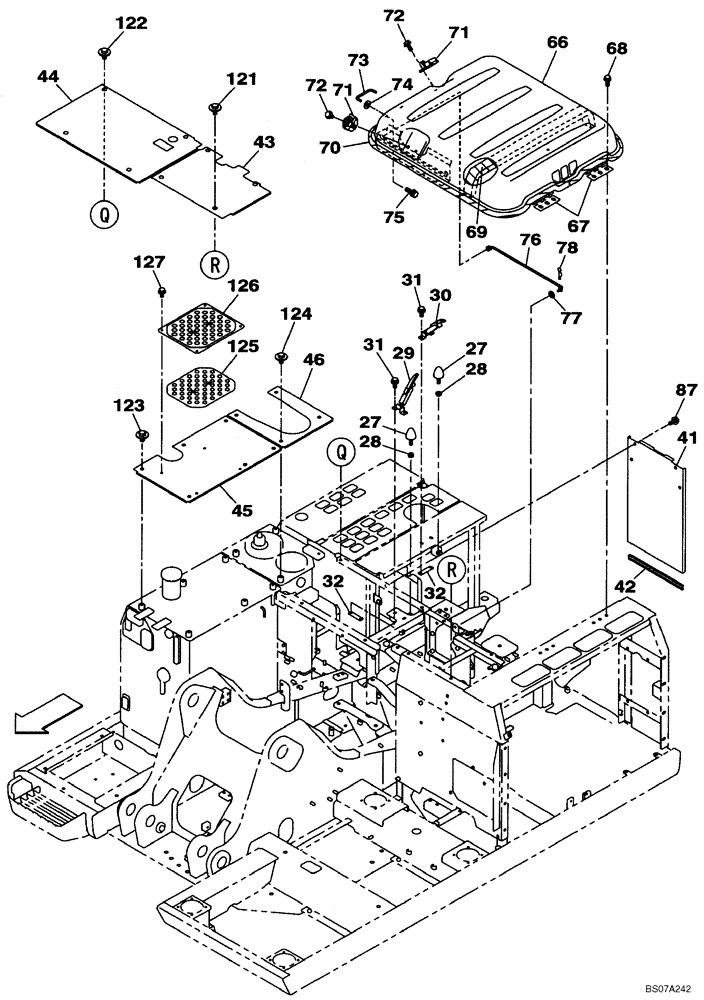

Запчасти Case CX160B (09-07) - HOOD, ENGINE - INSULATION (09) - CHASSIS/ATTACHMENTS

27

151108A1

STOP

2шт.

28

KBH0446

NUT

2шт.

29

152423A1

LATCH

1шт.

30

150709A1

WIRE

1шт.

31

166350A1

BOLT

4шт.

32

KHN16780

PLATE

4шт.

41

KNN11290Y2

PARTITION

Replaces KLN11010

1шт.

42

HKH0048

SEAL

1шт.

43

KLN11080G1

COVER

1шт.

44

KNN11310Y2

COVER

Replaces KLN11090G1

1шт.

45

KLN11100G1

COVER

1шт.

46

KLN11110G1

COVER

1шт.

66

KNN10960G1

ENGINE HOOD

Engine Hood; Incl. 67, Replaces KNN10960

1шт.

67

KHN2143

HINGE

2шт.

68

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

69

KNN11030

SEAL

1шт.

70

KHN16790

GASKET

1шт.

71

150785A1

STOP LOCK

2шт.

72

166350A1

BOLT

4шт.

73

KHN2537

HANDLE

1шт.

74

KHN2538

WASHER

2шт.

75

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

76

KNN11020

STAY

1шт.

77

150409A1

WASHER

1шт.

87

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

121

KHN12020

BOLT,Spcl

4шт.

122

KHN12020

BOLT,Spcl

4шт.

123

KHN12020

BOLT,Spcl

6шт.

124

KHN12020

BOLT,Spcl

4шт.

125

KHN10940

RUBBER PAD

1шт.

126

KHN13510

COVER

1шт.

126

KHN13540

BOLT,Spcl

4шт.
