Запчасти Case CX160B (09-05) - FRAMES, COVERS - INSULATION (09) - CHASSIS/ATTACHMENTS

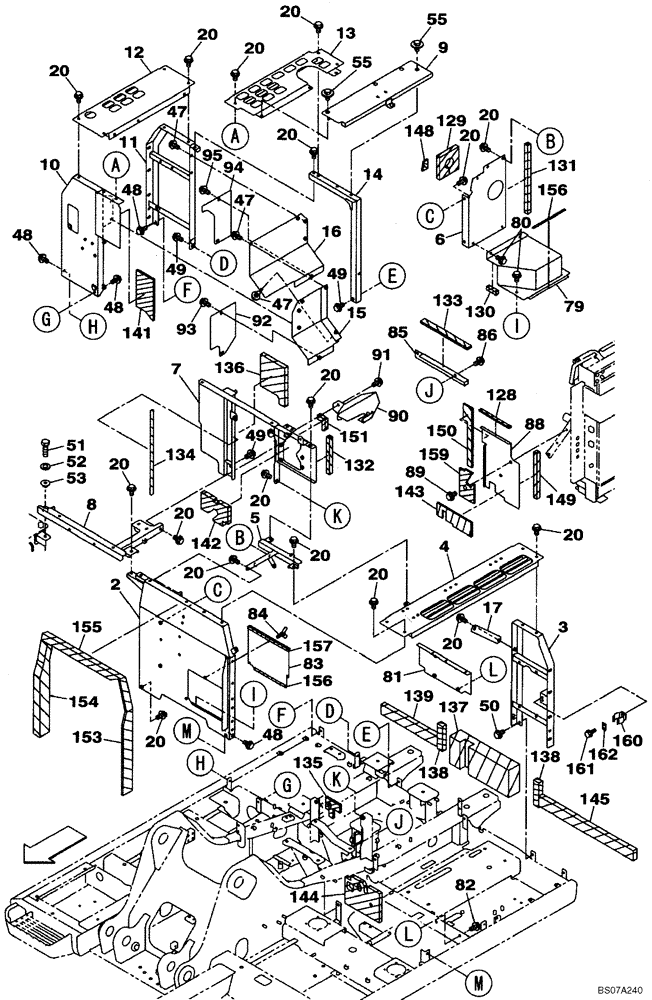

Схема запчастей Case CX160B - (09-05) - FRAMES, COVERS - INSULATION (09) - CHASSIS/ATTACHMENTS
132
11
5
130
85
139
12
13
138
154
47
20
150
133
83
16
156
3
9
15
49
84
7
51
49
131
8
137
94
82
14
160
2
55
151
79
20
20
20
20
48
93
55
20
162
90
148
80
20
159
20
156
49
17
143
4
129
136
20
89
47
138
20
50
134
95
20
92
153
155
142
20
20
81
20
48
144
145
52
88
141
6
20
48
47
157
86
135
20
48
10
149
53
20
91
161
128

Артикул

Название

Примечание

Количество

0

UPPER STRUCTURE

1шт.

2

KLN10910

SUPPORT ASSY.

1шт.

3

KLN10920

SUPPORT ASSY.

1шт.

4

KLN10930

SIEVE

1шт.

5

KLN10940

SUPPORT ASSY.

1шт.

6

KLN10950

COVER

1шт.

7

KLN10980

SUPPORT ASSY.

1шт.

8

KLN10990

SUPPORT ASSY.

1шт.

9

KLN11000

SUPPORT ASSY.

1шт.

10

KLN11030

SUPPORT ASSY.

1шт.

10

KNN11480

STEEL PLATE

, Serial Range: N7EAF1170-N8EAF1236

1шт.

10

KNN11480

STEEL PLATE

, Serial Range: N7SAF1267-N8SAF1440

1шт.

10

KNN11480

STEEL PLATE

, Serial Range: N7EAG1153-N8EAG1223

1шт.

11

KLN11040

SUPPORT ASSY.

1шт.

12

KLN11050

SUPPORT ASSY.

1шт.

13

KLN11060

SUPPORT ASSY.

1шт.

14

KLN11070

SUPPORT ASSY.

1шт.

15

KLN11120

COVER

1шт.

16

KLN11130

COVER

1шт.

17

KLN11230

BRACKET

1шт.

20

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

32шт.

47

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

48

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

49

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

50

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

51

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Replaces 166352A1

1шт.

52

KHN18020

SPACER

Replaces 162409A1

1шт.

53

KHN18030

WASHER

Replaces KHN2061

1шт.

55

KHN12020

BOLT,Spcl

4шт.

79

KLN10960

COVER

1шт.

80

166350A1

BOLT

4шт.

81

KLN10970

BRACKET

1шт.

82

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

83

KHN12760

COVER

1шт.

84

KHN17030

SPECIAL BOLT

3шт.

85

KLN10290

COVER

1шт.

86

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

88

KLN11020

COVER

1шт.

89

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

90

KNN10870

COVER

1шт.

91

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

92

KLN11140

COVER

1шт.

93

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

94

KLN11150

COVER

1шт.

95

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

128

KMN2063

SEAL

1шт.

129

KLN10410

NOISE PROTECTION

1шт.

130

KLN10420

SEAL

1шт.

131

KLN10430

SEAL

1шт.

132

KLN10460

SEAL

1шт.

133

KLN10520

SEAL

1шт.

134

KLN10530

SEAL

1шт.

135

KLN10540

SEAL

1шт.

136

KLN10550

NOISE PROTECTION

1шт.

137

KLN10560

NOISE PROTECTION

1шт.

138

KLN10580

SEAL

2шт.

139

KLN10590

NOISE PROTECTION

1шт.

141

KLN11170

NOISE PROTECTION

1шт.

142

KLN11180

NOISE PROTECTION

1шт.

143

KLN11190

SEAL

1шт.

144

KLN11200

NOISE PROTECTION

1шт.

145

KLN11210

NOISE PROTECTION

2шт.

148

KLN11270

SEAL

1шт.

149

KNN10720

SEAL

1шт.

150

KNN10730

SEAL

1шт.

151

KNN10880

SEAL

1шт.

153

KLN11280

NOISE PROTECTION

Replaces KRN12770

1шт.

154

KRN14200

SEAL

1шт.

155

KRN14210

SEAL

1шт.

156

KRN14530

SEAL

2шт.

157

KRN14540

SEAL

1шт.

159

KLN11290

NOISE PROTECTION

Seal, Cushion

1шт.

160

152772A1

HOLDER

Grease Gun

1шт.

161

166350A1

BOLT

2шт.

162

KHN3548

PLATE

1шт.

Выбрано товаров: 75
