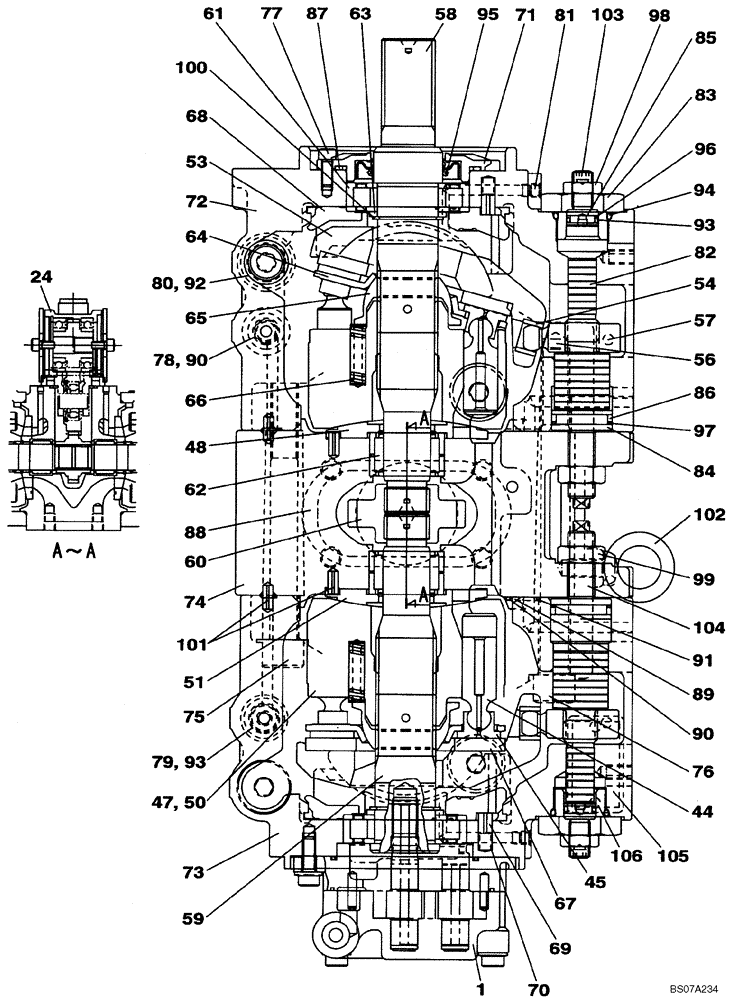

Запчасти Case CX160B (08-92) - KLJ10610 PUMP ASSY, HYDRAULIC - PISTON (08) - HYDRAULICS

KLJ10610

HYDRAULIC PUMP

Includes All Parts On Figure 08-92 - 08-97

1шт.

KLJ10571R

REMAN-HYD PUMP

CX160B CRAWLER EXCAVATOR TIER 3 (NA), PISTON (1/07-), Reman for New PN KLJ10610

1шт.

KLJ10571C

CORE-HYDRAULIC PUMP

Return Number

1шт.

KNJ10650R

REMAN-HYD PUMP

CX160B CRAWLER EXCAVATOR TIER 3 (NA), HYDRAULIC - PISTON (1/07-), Reman for New PN KLJ10610

1шт.

KNJ10650C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

LJ015050

HYDRAULIC PUMP

See Figure 08-93

1шт.

1

LJ015050R

REMAN-HYD PUMP

Reman For New P/N LJ015050

1шт.

1

LJ015050C

CORE-HYDRAULIC PUMP

Return Number

1шт.

LC003030

GEAR

See Figure 08-93

1шт.

LJ015060

PISTON

Incl. 44, 45

2шт.

44

NSS

NOT SOLD SEPARAT

Piston

9шт.

45

NSS

NOT SOLD SEPARAT

Shoe

9шт.

LJ015070

BARREL

Incl. 47, 48

1шт.

47

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

48

NSS

NOT SOLD SEPARAT

Plate

1шт.

LJ015080

BARREL

Incl. 50, 51

1шт.

50

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

51

NSS

NOT SOLD SEPARAT

Plate

1шт.

LR015660

PLATE

Incl. 53, 54

2шт.

53

NSS

NOT SOLD SEPARAT

Plate

1шт.

54

NSS

NOT SOLD SEPARAT

Bushing

1шт.

LA011170

SPECIAL PIN

Incl. 56, 57

1шт.

56

NSS

NOT SOLD SEPARAT

Pin

1шт.

57

NSS

NOT SOLD SEPARAT

Pin

1шт.

58

LB012050

SHAFT

1шт.

59

LB012060

SHAFT

1шт.

60

LC003020

GEAR

1шт.

61

LB012040

BEARING, ROLLER, CYL

2шт.

62

LB012030

NEEDLE BEARING

2шт.

63

TH00018

SPACER

2шт.

64

LR015670

PLATE

2шт.

65

LB012070

BUSHING

2шт.

66

156960A1

SPRING

12шт.

67

LR015680

PLATE

Shoe

2шт.

68

LS003430

SUPPORT

2шт.

69

LA011180

DOWEL

2шт.

70

LG006160

SPRING

2шт.

71

LW005220

COVER

1шт.

72

LW005230

HOUSING

1шт.

73

LW005240

HOUSING

1шт.

74

LJ015090

BLOCK

1шт.

75

LA011190

BOLT,Hex Skt Hd

2шт.

76

LA011200

BOLT,Hex Skt Hd

2шт.

77

861-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

78

LK00015

PLUG

2шт.

79

LK00008

PLUG

2шт.

80

LK00038

PLUG

4шт.

81

LK00003

PLUG

9шт.

82

LJ015100

PISTON

2шт.

83

LK005750

PLUG

2шт.

84

TG00219

STOP LOCK

2шт.

85

LG006170

STOP LOCK

2шт.

86

LE014710

O-RING

2шт.

87

LE013530

O-RING

1шт.

88

LE013510

O-RING

(used under cover on top of pump or under aux gear pump)

1шт.

89

LE00606

O-RING

2шт.

90

LE013410

O-RING

6шт.

91

LE013470

O-RING

12шт.

92

LE01177

O-RING

4шт.

93

LE013490

O-RING

4шт.

94

LE015260

O-RING

2шт.

95

TE01038

OIL SEAL

1шт.

96

153961A1

BACK-UP RING

2шт.

97

154002A1

BACK-UP RING

2шт.

98

164R012VR

JAM NUT

2шт.

99

164R016VR

NUT

2шт.

100

800-1135

SNAP RING,M35, Ext

2шт.

101

338W060Z014B

LINCH PIN

4шт.

102

126R010SR

EYEBOLT

BOLT, EYE

2шт.

103

LV000490

SCREW,Spcl

2шт.

104

TV00002

SCREW

2шт.

105

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

106

LA00027

RIVET

2шт.
