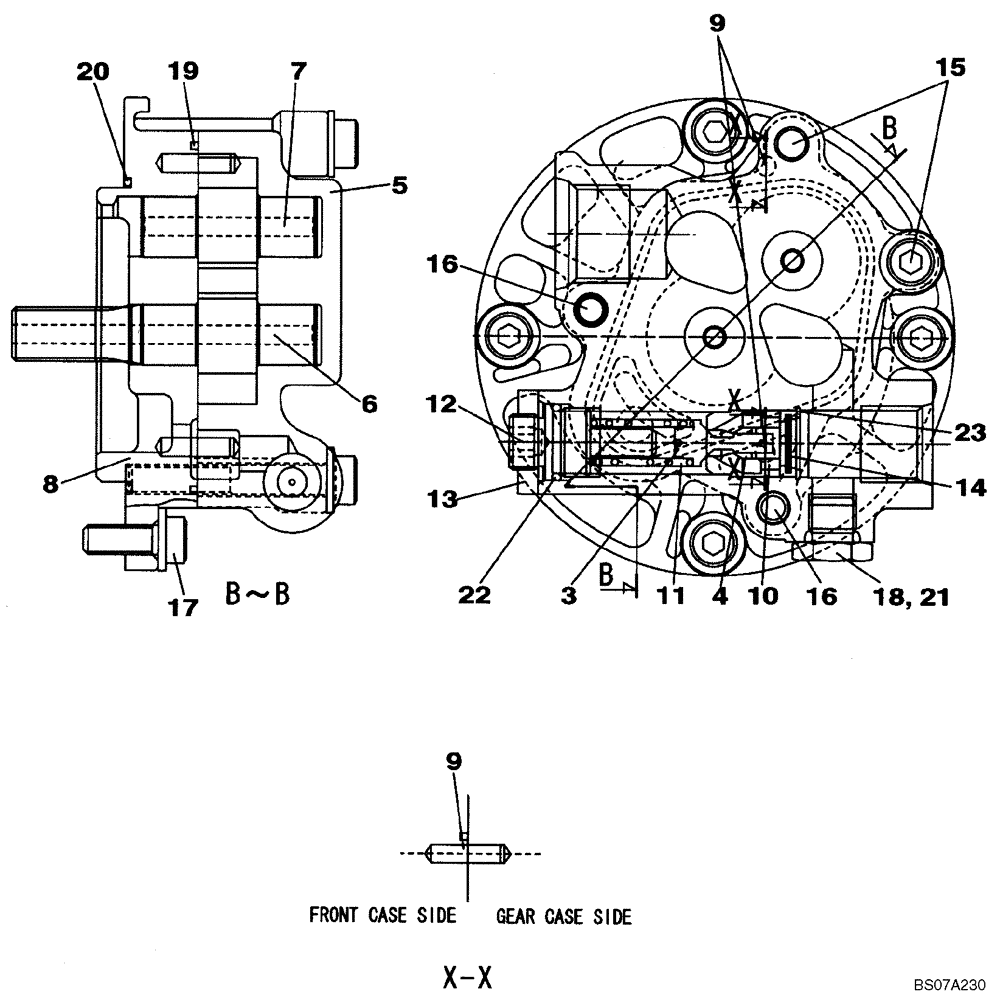

Запчасти Case CX160B (08-88) - KLJ10570 PUMP ASSY, HYDRAULIC - GEAR PUMP ASSY (08) - HYDRAULICS

KLJ10570

HYDRAULIC PUMP

Includes All Parts On Figure 08-87 - 08-91

1шт.

KLJ10571R

REMAN-HYD PUMP

CX160B CRAWLER EXCAVATOR TIER 3 (NA), GEAR PUMP ASSY (1/07-), Reman for New PN KLJ10570

1шт.

KLJ10571C

CORE-HYDRAULIC PUMP

Return Number

1шт.

LJ015050

HYDRAULIC PUMP

Incl. 3 - 23

1шт.

LJ015050R

REMAN-HYD PUMP

Reman For New P/N LJ015050R

1шт.

LJ015050C

CORE-HYDRAULIC PUMP

Return Number

1шт.

LC003010

GEAR

Incl. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

Poppet

1шт.

4

NSS

NOT SOLD SEPARAT

Seat

1шт.

5

NSS

NOT SOLD SEPARAT

Case, Gear

1шт.

6

NSS

NOT SOLD SEPARAT

Gear

1шт.

7

NSS

NOT SOLD SEPARAT

Gear

1шт.

8

NSS

NOT SOLD SEPARAT

Case

1шт.

9

NSS

NOT SOLD SEPARAT

Pin

2шт.

10

LE01175

RING

1шт.

11

LG00536

SPRING

1шт.

12

LF00043

ADJUSTER

1шт.

13

163662A1

LOCK NUT

1шт.

14

163663A1

FILTER

1шт.

15

163664A1

FLANGE BOLT,Hex Skt, M8 x 50mm

2шт.

16

163665A1

FLANGE BOLT,Hex Skt, M8 x 60mm

2шт.

17

163666A1

FLANGE BOLT

4шт.

18

155496A1

PLUG

1шт.

19

163667A1

SEALING RING

1шт.

20

LE015250

O-RING

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

154483A1

O-RING

1шт.

23

163668A1

RING, LOCKING

RING, LOCK

1шт.
