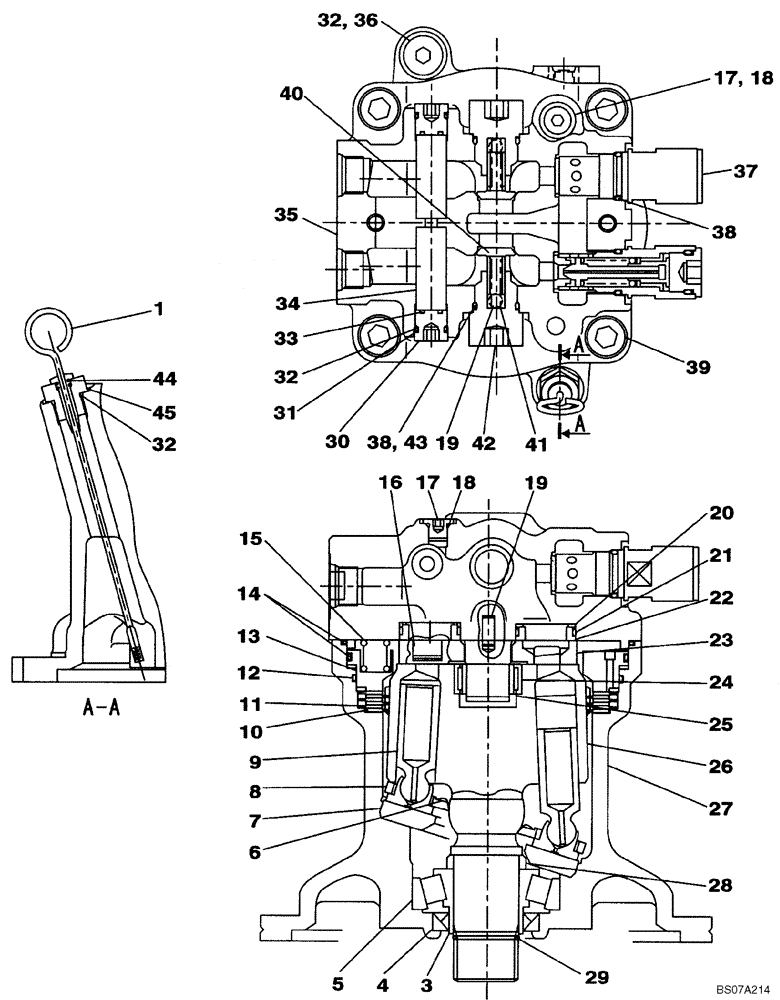

Запчасти Case CX160B (08-52) - MOTOR ASSY - SWING (08) - HYDRAULICS

KLC10020

MOTO-REDUCTION GEAR

Incl. 1 - 45; Also Includes Parts On Figure 08-53

1шт.

KLC10020R

REMAN-MOTO REDUCTION

CX160B CRAWLER EXCAVATOR TIER 3 (NA) (1/07-)

1шт.

KLC10020C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

1

KRC10030

DIPSTICK

1шт.

LJ014660

HYDRAULIC MOTOR

Incl. 3 - 45

1шт.

KLC10060R

REMAN-HYD MOTOR

CX160B CRAWLER EXCAVATOR TIER 3 (NA), SWING (1/07-), Reman for New PN LJ014660

1шт.

KLC10060C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

155620A1

SPACER

1шт.

4

155106A1

OIL SEAL

1шт.

5

156133A1

TAPERED BEARING,45mm ID x 100mm OD x 27.25mm W

1шт.

6

156080A1

SPRING

1шт.

7

155616A1

PLATE

1шт.

8

155617A1

PLATE

1шт.

9

TIP0002145

PISTON

9шт.

10

155619A1

PLATE

3шт.

11

155618A1

PLATE

3шт.

12

155198A1

O-RING

1шт.

13

LPM0116

PISTON

1шт.

14

155199A1

O-RING

2шт.

15

156082A1

SPRING

20шт.

16

LJ00723

PISTON

2шт.

17

160306A1

CAP

3шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

19

160101A1

COTTER PIN

2шт.

20

LG00337

SPRING

4шт.

21

LE00776

RING

4шт.

22

LB00544

BUSHING

4шт.

23

LR014920

PLATE

1шт.

24

156134A1

NEEDLE BEARING,Needle, 30mm ID x 45mm OD x 20mm W

1шт.

25

155614A1

RING, LOCKING

RING, LOCK

1шт.

26

TIP0002146

BARREL

1шт.

27

TIP0002136

HOUSING

1шт.

28

165745A1

COLLAR

1шт.

29

155613A1

RING, LOCKING

RING, LOCK

1шт.

30

LZC0156

CAP

2шт.

31

166176A1

BACK-UP RING

2шт.

32

154487A1

O-RING

4шт.

33

154471A1

O-RING

2шт.

34

LK005600

PLUG

2шт.

35

TIP0002137

HOUSING

1шт.

36

160903A1

CAP

1шт.

37

KRC0184

VALVE, PRESSURE RELI

EF Incl. 155990A1 Shim Kit

2шт.

37-1

155990A1

SHIM KIT

Not Illustrated

1шт.

38

154515A1

O-RING

4шт.

39

863-16060

HEX SOC SCREW,M16 x 60mm, Cl 12.9

4шт.

40

155944A1

PLUNGER

Check Valve

2шт.

41

156079A1

SPRING

2шт.

42

156305A1

CAP

2шт.

43

153991A1

BACK-UP RING

2шт.

44

155201A1

O-RING

1шт.

45

LR00895

CAP

1шт.
