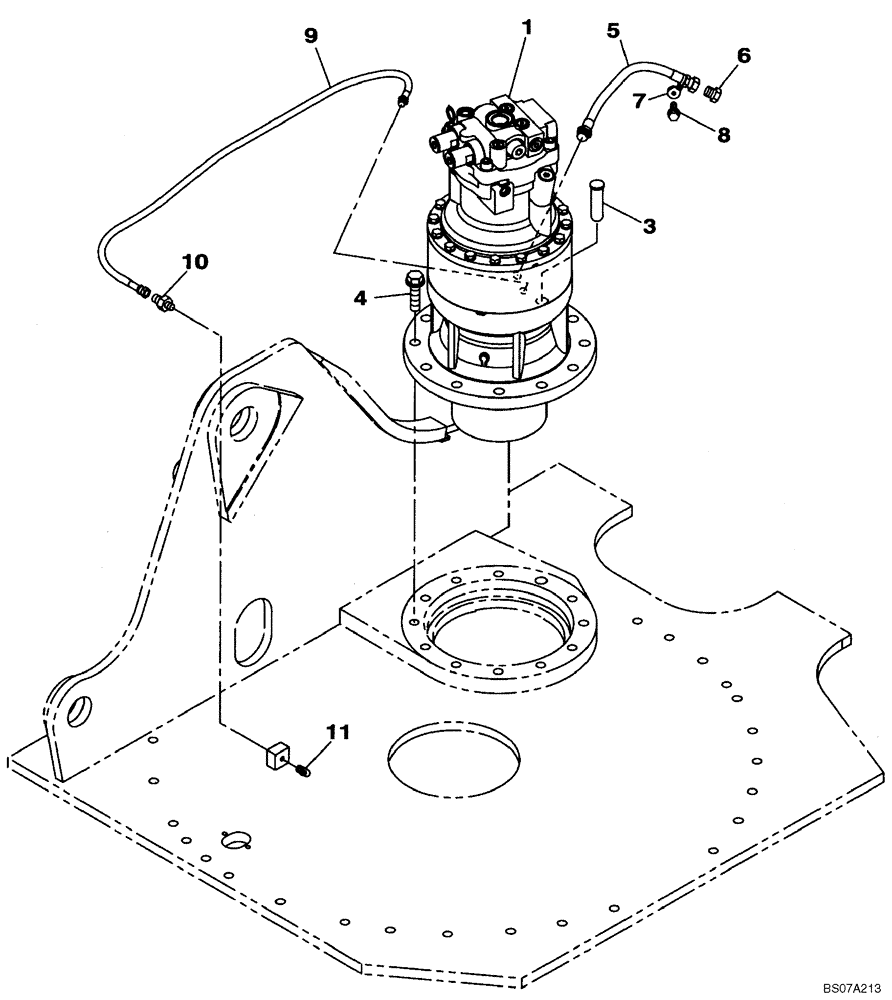

Запчасти Case CX160B (08-51) - MOUNTING - SWING MOTOR (08) - HYDRAULICS

1

KLC10020

MOTO-REDUCTION GEAR

See Figure 08-52, 08-53

1шт.

1

KLC10020R

REMAN-MOTO REDUCTION

CX160B CRAWLER EXCAVATOR TIER 3 (NA) (1/07-)

1шт.

1

KLC10020C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

3

158955A1

HEADED PIN

1шт.

4

166354A1

BOLT,Sems, M20 x 75mm

11шт.

5

KRJ16100

HYDRAULIC HOSE,12.70 mm ID x 470.00 mm

1шт.

6

KHP0578

PLUG

1шт.

7

KHR2584

CLAMP

1шт.

8

KHR2584

CLAMP

1шт.

9

KHJ16120

HOSE,6.30 mm ID x 1250.00 mm

1шт.

10

KRJ4050

ADAPTER

1шт.

11

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.
