Запчасти Case CX160B (08-40) - SECOND OPTION LINE, 2,70 METER (8 FT 10 IN) ARM (08) - HYDRAULICS

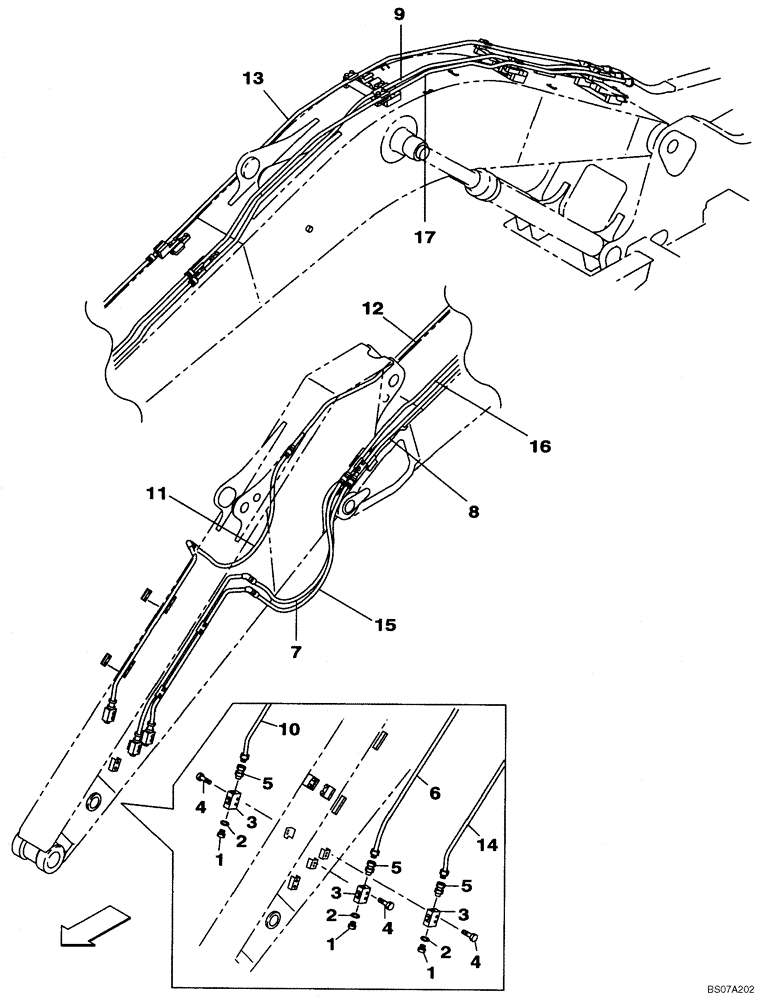

Схема запчастей Case CX160B - (08-40) - SECOND OPTION LINE, 2,70 METER (8 FT 10 IN) ARM (08) - HYDRAULICS
3
4
8
6
15
5
3
3
5
13
2
1
2
1
2
4
10
5
4
11
7
17
1
16
12
14
9

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

Incl. 2

3шт.

2

154487A1

O-RING

1шт.

3

KHV10440

VALVE

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

5

KHJ1939

FITTING

3шт.

6

KLV12470

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

7

168535A1

HYDRAULIC HOSE

1шт.

8

KLV12450

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

9

KLV12420

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

10

KLV12480

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

11

168535A1

HYDRAULIC HOSE

1шт.

12

KLV12460

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

13

KLV12430

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

14

KLV12490

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

15

KLV11700

HOSE ASSY.,12.70 mm ID x 1300.00 mm

1шт.

16

KLV12450

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

17

KLV12440

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

Выбрано товаров: 17
