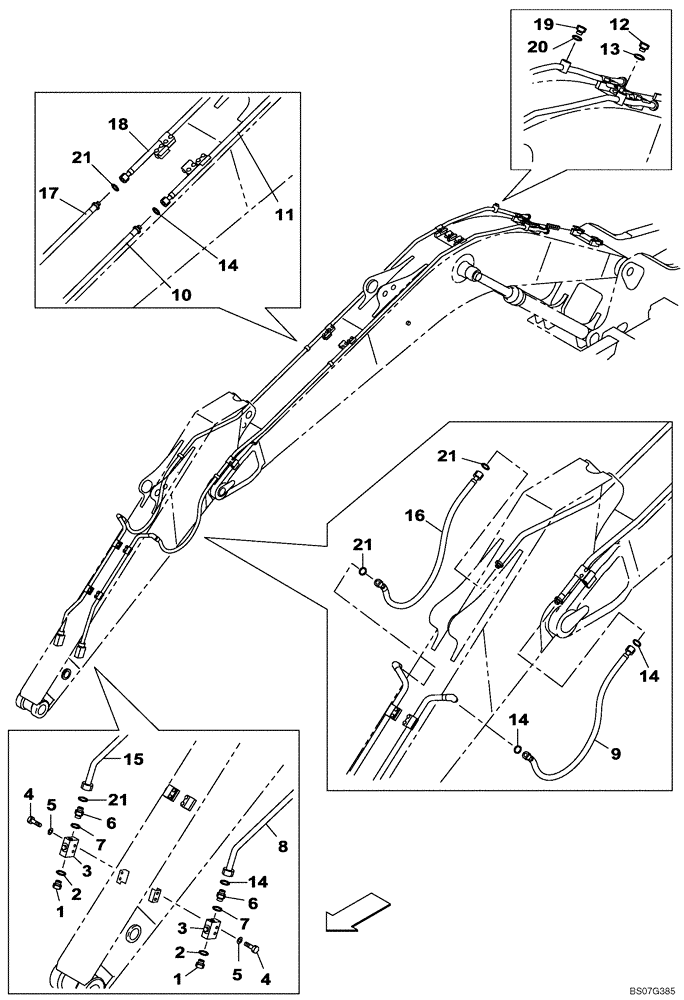

Запчасти Case CX160B (08-40[03]) - HYDRAULIC LINES - ARM (2.23M) - OPTIONAL (08) - HYDRAULICS

1

152924A1

PLUG

Incls. Ref. 2

2шт.

2

154503A1

O-RING

2шт.

3

KHV10710

VALVE

2шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1348

ADAPTER

Incls. Ref. 7

2шт.

7

154503A1

O-RING

2шт.

8

KLV12720

HYD TUBE,Dia 27.2

L=725.8 mm

1шт.

9

KNV13720

HYDRAULIC HOSE,19mm ID x 1200mm L

1шт.

10

KLV12380Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD Adaptor

L

1шт.

11

KLV13700

HYD TUBE,Dia 27.2

L

1шт.

12

152924A1

PLUG

Incls. Ref. 13

1шт.

13

154503A1

O-RING

1шт.

14

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

15

KLV12730

HYD TUBE,Dia 27.2

R

1шт.

16

KNV13720

HYDRAULIC HOSE,19mm ID x 1200mm L

1шт.

17

KLV12390Y2

HYD TUBE,27.2mm X 20.8mm Adaptor

R

1шт.

18

KLV13710

HYD TUBE,Dia 27.2

R

1шт.

19

152924A1

PLUG

Incls. Ref. 20

1шт.

20

154503A1

O-RING

1шт.

21

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.
