Запчасти Case CX160B (08-39) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

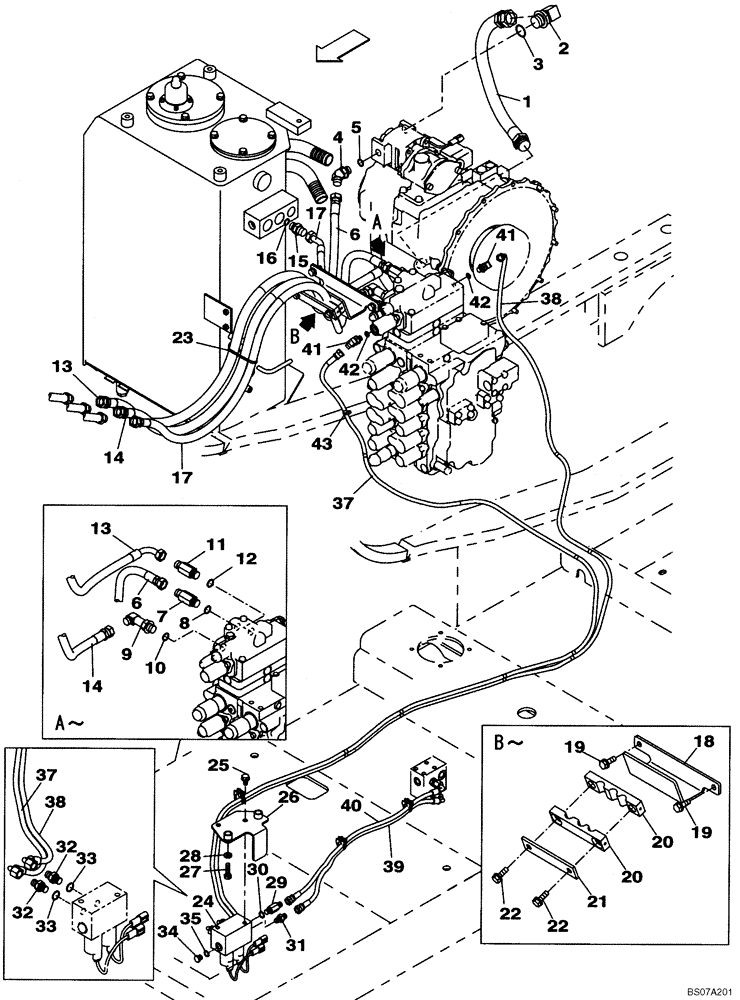

Схема запчастей Case CX160B - (08-39) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS
9
14
17
22
42
3
30
26
28
42
10
13
21
33
19
1
32
33
4
2
15
39
20
37
17
29
38
35
34
43
31
14
5
19
7
11
13
32
16
41
23
37
25
18
20
40
27
24
6
6
22
38
41
8
12

Артикул

Название

Примечание

Количество

1

KNJ13140

HOSE ASSY.,25.40 mm ID x 570.00 mm

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 3

1шт.

3

154523A1

O-RING

1шт.

4

157585A1

ELBOW

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

KLJ11520

HOSE ASSY.,12.70 mm ID x 1180.00 mm

1шт.

7

159361A1

ADAPTER

Incl. 8

1шт.

8

154487A1

O-RING

1шт.

9

KHJ1044

ELBOW

Incl. 10

1шт.

10

154487A1

O-RING

1шт.

11

159361A1

ADAPTER

Incl. 12

1шт.

12

154487A1

O-RING

1шт.

13

KLJ11130

HOSE ASSY.,12.70 mm ID x 1490.00 mm

1шт.

14

KLJ11140

HOSE ASSY.,12.70 mm ID x 1380.00 mm

1шт.

15

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 16

1шт.

16

154487A1

O-RING

1шт.

17

KLJ11150

HOSE ASSY.,12.70 mm ID x 1690.00 mm

1шт.

18

KLJ11160

BRACKET

1шт.

19

166347A1

BOLT,Sems, M10 x 30mm

2шт.

20

KRJ11580

HOSE CLIP

2шт.

21

KNJ13200

PLATE

1шт.

22

166347A1

BOLT,Sems, M10 x 30mm

2шт.

23

150496A1

MOUNTING CLIP

1шт.

24

KHJ14000

VALVE SECTION

See Figure 08-81

1шт.

25

166351A1

BOLT,Sems, M10 x 20mm

2шт.

26

KHJ15190

SUPPORT

1шт.

27

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

28

150409A1

WASHER

2шт.

29

162554A1

FITTING

Incl. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

31

161841A1

HYD CONNECTOR

1шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 33

2шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

159002A1

PLUG

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

KHJ12230

HYDRAULIC HOSE

3450 mm (135-13/16 in)

1шт.

38

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

39

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

40

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

41

150933A1

ELBOW

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

150496A1

MOUNTING CLIP

1шт.

Выбрано товаров: 42
