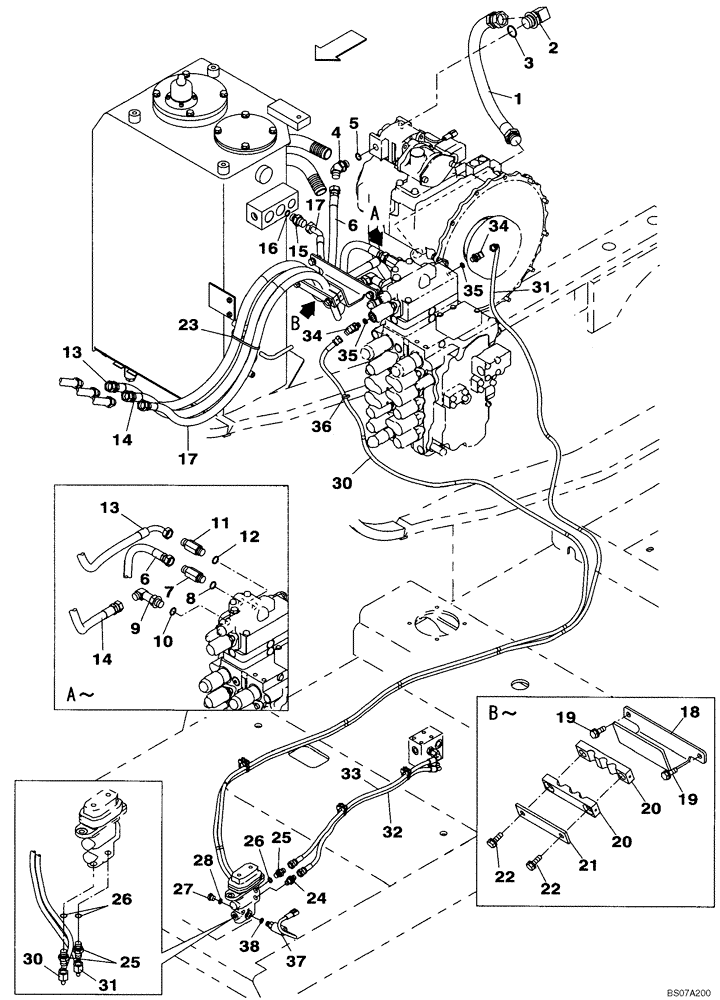

Запчасти Case CX160B (08-38) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

1

KNJ13140

HOSE ASSY.,25.40 mm ID x 570.00 mm

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 3

1шт.

3

154523A1

O-RING

1шт.

4

157585A1

ELBOW

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

KLJ11520

HOSE ASSY.,12.70 mm ID x 1180.00 mm

1шт.

7

159361A1

ADAPTER

Incl. 8

1шт.

8

154487A1

O-RING

1шт.

9

KHJ1044

ELBOW

Incl. 10

1шт.

10

154487A1

O-RING

1шт.

11

159361A1

ADAPTER

Incl. 12

1шт.

12

154487A1

O-RING

1шт.

13

KLJ11130

HOSE ASSY.,12.70 mm ID x 1490.00 mm

1шт.

14

KLJ11140

HOSE ASSY.,12.70 mm ID x 1380.00 mm

1шт.

15

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 16

1шт.

16

154487A1

O-RING

1шт.

17

KLJ11150

HOSE ASSY.,12.70 mm ID x 1690.00 mm

1шт.

18

KLJ11160

BRACKET

1шт.

19

166347A1

BOLT,Sems, M10 x 30mm

2шт.

20

KRJ11580

HOSE CLIP

2шт.

21

KNJ13200

PLATE

1шт.

22

166347A1

BOLT,Sems, M10 x 30mm

2шт.

23

150496A1

MOUNTING CLIP

1шт.

24

161841A1

HYD CONNECTOR

1шт.

25

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 26

3шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

27

159002A1

PLUG

Incl. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

KHJ12230

HYDRAULIC HOSE

3450 mm (135-13/16 in)

1шт.

31

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

32

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

33

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

34

150933A1

ELBOW

Incl. 35

2шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

150496A1

MOUNTING CLIP

1шт.

37

KHR10820

PRESSURE SWITCH

Incl. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
