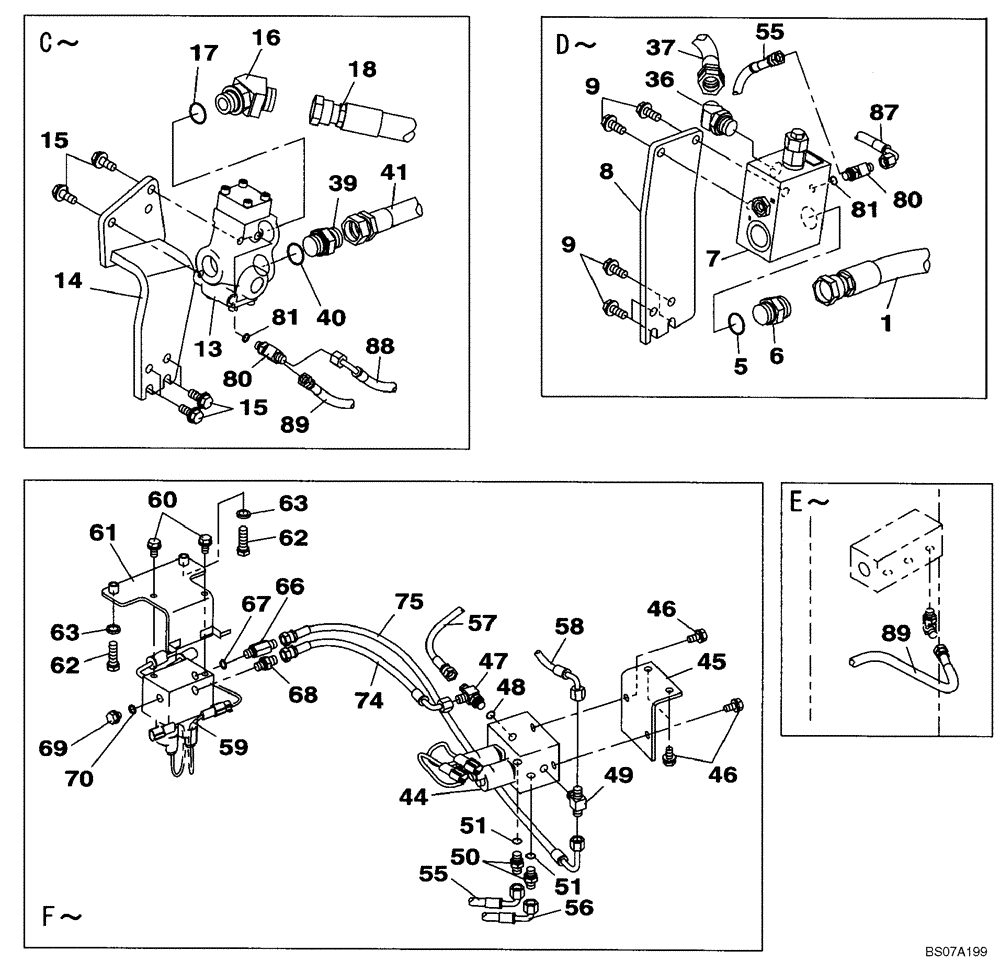

Запчасти Case CX160B (08-37) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

1

KLJ10980

HOSE ASSY.,15.90 mm ID x 650.00 mm

1шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

6

KHJ1941

FITTING

1шт.

7

KHJ10410

VALVE SECTION

See Figure 08-78

1шт.

8

KRJ11470

SUPPORT

1шт.

9

166352A1

BOLT

6шт.

13

KHJ10420

VALVE SECTION

See Figure 08-77

1шт.

14

KRJ16050

SUPPORT

1шт.

15

166352A1

BOLT

6шт.

16

KHJ16290

ELBOW

1шт.

17

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

18

KLJ11350

HOSE ASSY.,15.00 mm ID x 1140.00 mm

1шт.

36

KHJ2243

ELBOW

1шт.

37

KAJ2882

HYDRAULIC HOSE,12.70 mm ID x 800.00 mm

1шт.

39

169040A1

ADAPTER

Incl. 40

1шт.

40

155211A1

O-RING

1шт.

41

KBJ1683

HYDRAULIC HOSE,19.00 mm ID x 680.00 mm

1шт.

44

KHJ14000

VALVE SECTION

See Figure 08-81

1шт.

45

KHJ14670

SUPPORT

1шт.

46

166351A1

BOLT,Sems, M10 x 20mm

2шт.

47

159497A1

TEE

Incl. 48

1шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

167321A1

TEE

1шт.

50

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 51

2шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

56

KHJ15160

HYDRAULIC HOSE

3800 mm (149-5/8 in)

1шт.

57

KHJ14650

HYDRAULIC HOSE

650 mm (33-7/8 in)

1шт.

58

KHJ2048

HOSE,6.3mm ID x 750mm L

800 mm (31-1/2 in)

1шт.

59

KHJ14000

VALVE SECTION

See Figure 08-81

1шт.

60

166351A1

BOLT,Sems, M10 x 20mm

2шт.

61

KHJ14680

SUPPORT

1шт.

62

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

63

150409A1

WASHER

2шт.

66

162554A1

FITTING

Incl. 67

1шт.

67

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

161841A1

HYD CONNECTOR

1шт.

69

159002A1

PLUG

Incl. 70

1шт.

70

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

KHJ2180

HOSE,6.3mm ID x 500mm L

500 mm (19-11/16 in)

1шт.

75

KHJ2194

HOSE,6.3mm ID x 650mm L

650 mm (25-5/8 in)

1шт.

80

159497A1

TEE

Incl. 81

2шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

87

KHJ16860

HOSE

950 mm (37-3/8 in), Repaces KHJ2249

1шт.

88

KHJ16880

HOSE

1100 mm (43-5/16 in), Replaces KHJ2092

1шт.

89

KHJ2049

HOSE

900 mm (35-7/16 in)

1шт.
