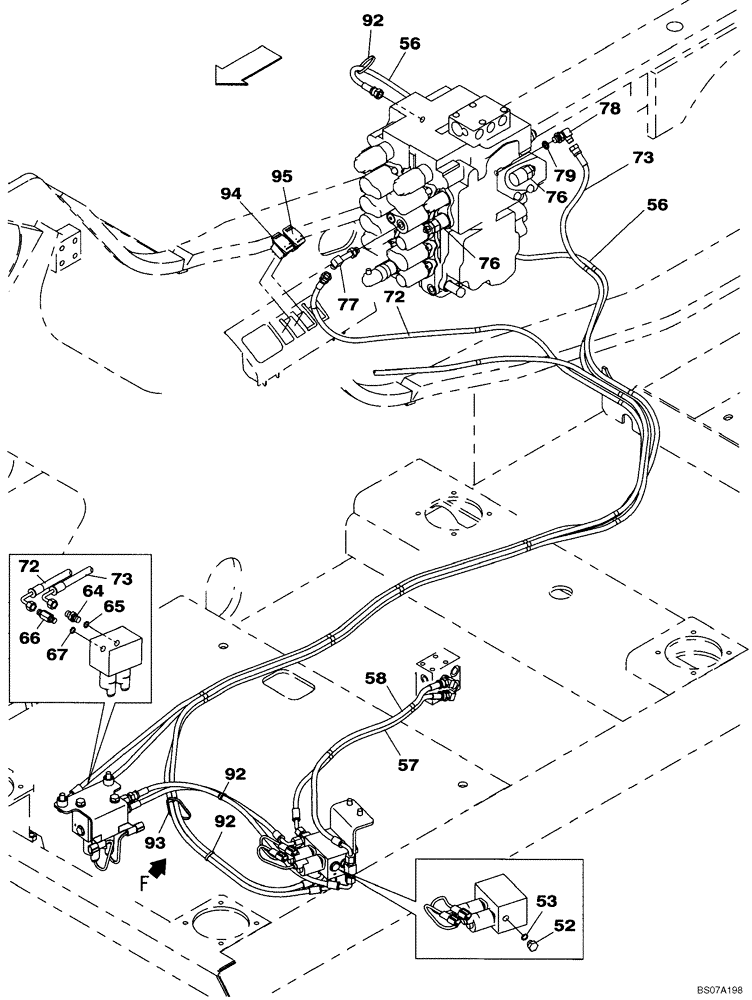

Запчасти Case CX160B (08-36) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

52

159002A1

PLUG

Incl. 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

56

KHJ15160

HYDRAULIC HOSE

3800 mm (149-5/8 in)

1шт.

57

KHJ14650

HYDRAULIC HOSE

650 mm (33-7/8 in)

1шт.

58

KHJ2048

HOSE,6.3mm ID x 750mm L

800 mm (31-1/2 in)

1шт.

64

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 65

1шт.

65

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

66

162554A1

FITTING

Incl. 67

1шт.

67

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

KHJ2198

HOSE,6.3mm ID x 2850mm L

2850 mm (112-3/16 in)

1шт.

73

KHJ2165

HOSE

2700 mm (106-9/32 in)

1шт.

76

KNJ2732

VALVE, PRESSURE RELI

EF

2шт.

77

KHJ1178

ELBOW

1шт.

78

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 79

1шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

92

150496A1

MOUNTING CLIP

1шт.

93

150498A1

MOUNTING CLIP

1шт.

94

KHR14450

SWITCH,Multipurpose

1шт.

95

KHR14460

SWITCH,Low Flow

1шт.
