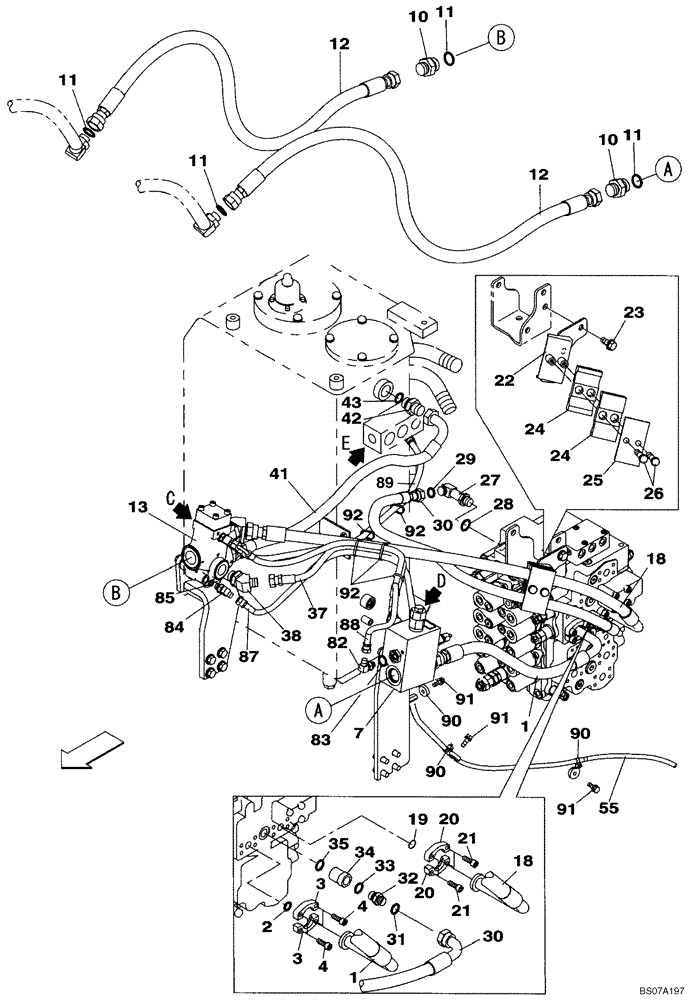

Запчасти Case CX160B (08-35) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

1

KLJ10980

HOSE ASSY.,15.90 mm ID x 650.00 mm

1шт.

2

155210A1

O-RING

1шт.

3

153458A1

FLANGE

Split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

7

KHJ10410

VALVE SECTION

See Figure 08-78

1шт.

10

KHJ1941

FITTING

2шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

12

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

1460 mm (57-1/2 in), Replaces KLJ11340

2шт.

13

KHJ10420

VALVE SECTION

See Figure 08-77

1шт.

18

KLJ11350

HOSE ASSY.,15.00 mm ID x 1140.00 mm

1шт.

19

155210A1

O-RING

1шт.

20

153458A1

FLANGE

Split

2шт.

21

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

22

KNJ14020

BRACKET

1шт.

23

166352A1

BOLT

2шт.

24

KLJ10730

COLLAR CLAMP

2шт.

25

KRH10210

PLATE

1шт.

26

166347A1

BOLT,Sems, M10 x 30mm

2шт.

27

KHJ14690

ELBOW

Incl. 28

1шт.

28

154487A1

O-RING

1шт.

29

155204A1

O-RING

1шт.

30

KNJ12880

HOSE ASSY.,12.70 mm ID x 930.00 mm

1шт.

31

155204A1

O-RING

1шт.

32

KHJ14710

ADAPTER

Incl. 33

1шт.

33

154487A1

O-RING

1шт.

34

KHJ14720

CHECK VALVE

Incl. 35

1шт.

35

154495A1

O-RING

1шт.

37

KAJ2882

HYDRAULIC HOSE,12.70 mm ID x 800.00 mm

1шт.

38

KHJ2243

ELBOW

1шт.

41

KBJ1683

HYDRAULIC HOSE,19.00 mm ID x 680.00 mm

1шт.

42

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 43

1шт.

43

154503A1

O-RING

1шт.

55

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

82

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 83

1шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

150933A1

ELBOW

Incl. 85

1шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

87

KHJ16860

HOSE

950 mm (37-3/8 in), Replaces KHJ2249

1шт.

88

KHJ16880

HOSE

1100 mm (43-5/16 in), Replaces KHJ2092

1шт.

89

KHJ2049

HOSE

900 mm (35-7/16 in)

1шт.

90

KHR2584

CLAMP

3шт.

91

KHJ1215

BOLT,Spcl

3шт.

92

150496A1

MOUNTING CLIP

1шт.
