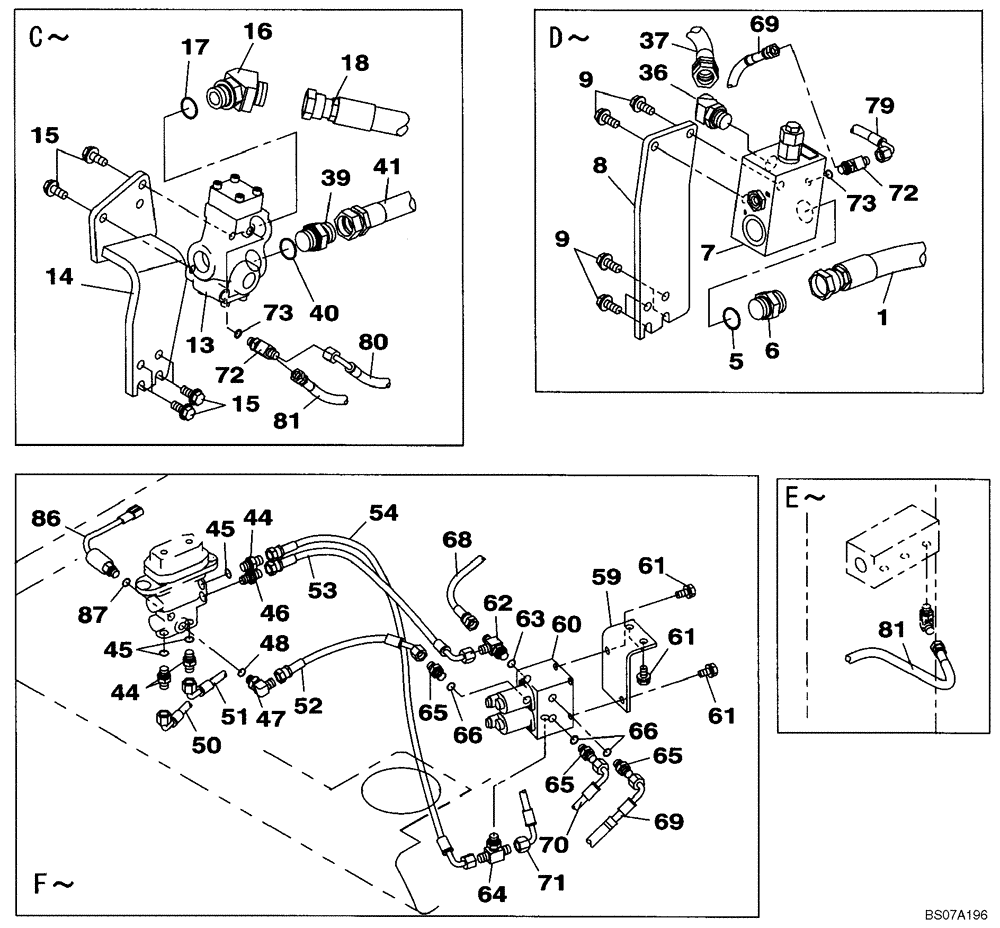

Запчасти Case CX160B (08-34) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, PEDAL ACTIVATED (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
KLJ10980
HOSE ASSY.,15.90 mm ID x 650.00 mm
1шт.
5
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
6
KHJ1941
FITTING
1шт.
7
KHJ10410
VALVE SECTION
See Figure 08-78
1шт.
8
KRJ11470
SUPPORT
1шт.
9
166352A1
BOLT
6шт.
13
KHJ10420
VALVE SECTION
See Figure 08-77
1шт.
14
KRJ16050
SUPPORT
1шт.
15
166352A1
BOLT
6шт.
16
KHJ16290
ELBOW
1шт.
17
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
18
KLJ11350
HOSE ASSY.,15.00 mm ID x 1140.00 mm
1шт.
36
KHJ2243
ELBOW
1шт.
37
KAJ2882
HYDRAULIC HOSE,12.70 mm ID x 800.00 mm
1шт.
39
169040A1
ADAPTER
Incl. 40
1шт.
41
KBJ1683
HYDRAULIC HOSE,19.00 mm ID x 680.00 mm
1шт.
44
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 45
3шт.
45
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
46
161841A1
HYD CONNECTOR
1шт.
47
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 48
1шт.
48
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
50
KHJ2198
HOSE,6.3mm ID x 2850mm L
2850 mm (114-3/16 in)
1шт.
51
KHJ2340
HOSE
2750 mm (108-1/4 in)
1шт.
52
KHJ2244
HOSE
600 mm (23-5/8 in)
1шт.
53
KHJ2085
HOSE
600 mm (23-5/8 in)
1шт.
54
KHJ2194
HOSE,6.3mm ID x 650mm L
650 mm (25-5/8 in)
1шт.
59
KHJ11510
SUPPORT
1шт.
60
KHJ14780
VALVE SECTION
See Figure 08-74
1шт.
61
166351A1
BOLT,Sems, M10 x 20mm
4шт.
62
159497A1
TEE
Incl. 63
1шт.
63
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
64
167321A1
TEE
1шт.
65
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 66
3шт.
66
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
68
KHJ2047
HOSE
650 mm (25-5/8 in)
1шт.
69
KHJ16300
HOSE
3650 mm (143-11/16 in)
1шт.
70
KHJ16310
HOSE
3850 mm (151-9/16 in)
1шт.
71
KHJ2086
HOSE,6.3mm ID x 700mm L
700 mm (27-9/16 in)
1шт.
72
159497A1
TEE
Incl. 73
2шт.
73
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
79
KHJ16860
HOSE
950 mm (37-3/8 in), Replaces KHJ2249
1шт.
80
KHJ16880
HOSE
1100 mm (43-5/16 in), Replaces KHJ2092
1шт.
81
KHJ2049
HOSE
900 mm (35-7/16 in)
1шт.
86
KHR10820
PRESSURE SWITCH
Incl. 87
1шт.
87
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
103
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
Выбрано товаров: 47
