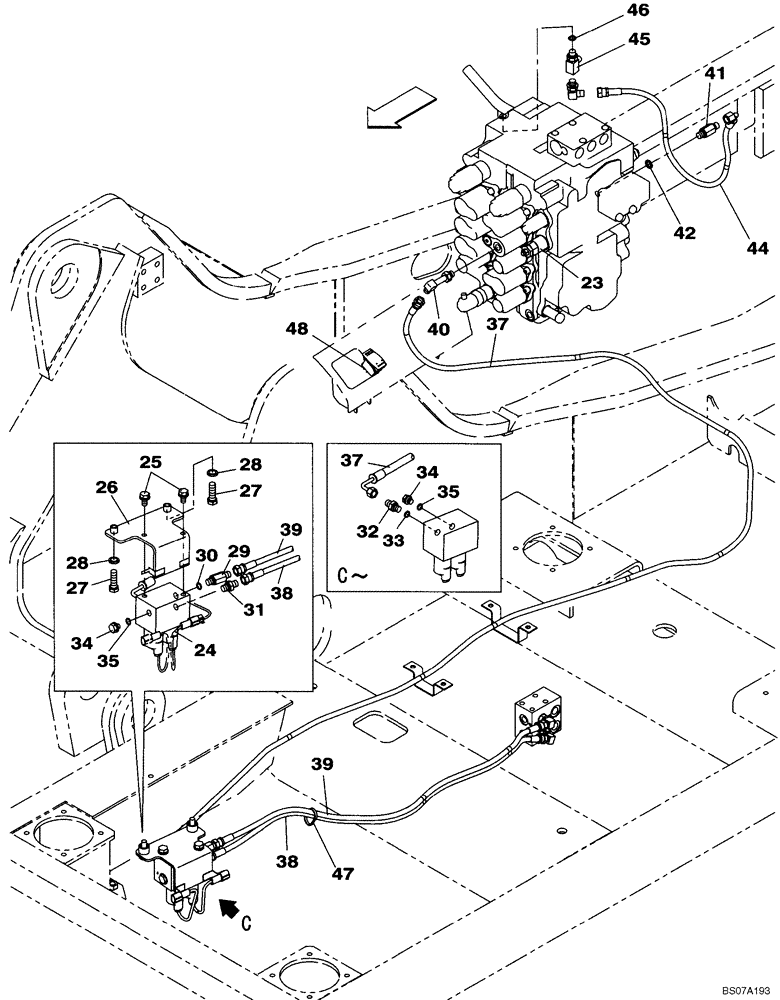

Запчасти Case CX160B (08-29) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

23

KNJ2732

VALVE, PRESSURE RELI

EF

1шт.

24

KHJ14000

VALVE SECTION

See Figure 08-81

1шт.

25

166351A1

BOLT,Sems, M10 x 20mm

2шт.

26

KHJ14680

SUPPORT

1шт.

27

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

28

150409A1

WASHER

2шт.

29

162554A1

FITTING

Incl. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

31

161841A1

HYD CONNECTOR

1шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

159002A1

PLUG

Incl. 35

2шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

KHJ2198

HOSE,6.3mm ID x 2850mm L

2850 mm (112-3/16 in)

1шт.

38

KHJ15180

HYDRAULIC HOSE

950 mm (37-3/8 in)

1шт.

39

KHJ2049

HOSE

900 mm (35-7/16 in)

1шт.

40

KHJ1178

ELBOW

1шт.

41

162554A1

FITTING

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

44

KHJ2195

HOSE

680 mm (26-3/4 in)

1шт.

45

KHJ2773

TEE

Incl. 46

1шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

47

150496A1

MOUNTING CLIP

1шт.

48

KHR14060

SWITCH,Breaker

1шт.
