(08-28) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED

Запчасти Case CX160B (08-28) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

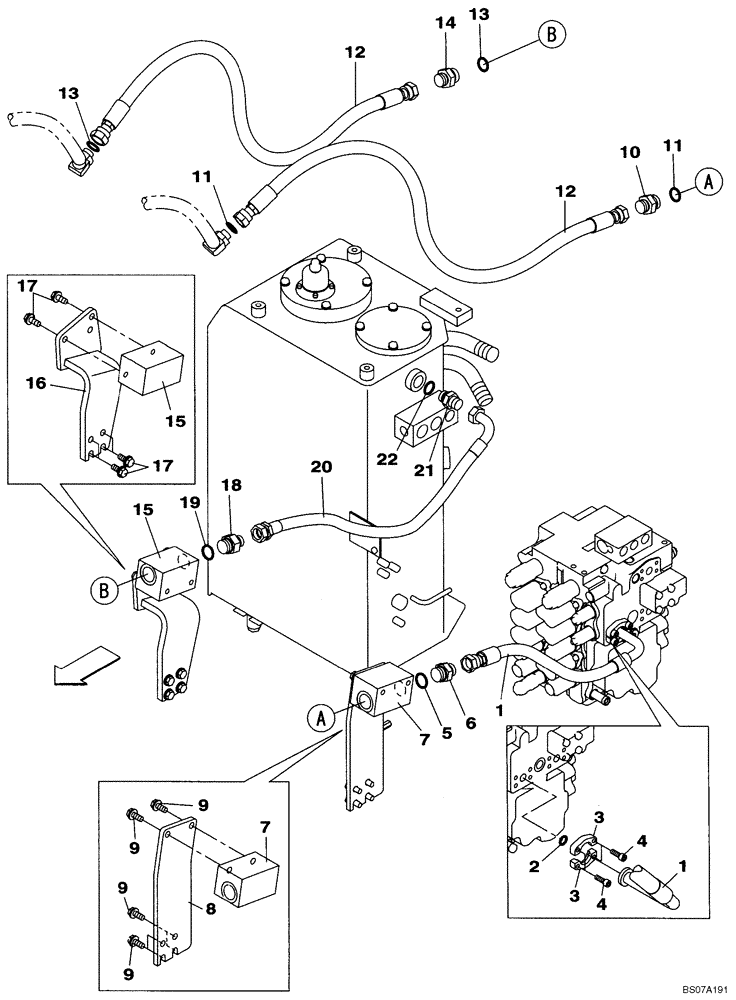

Схема запчастей Case CX160B - (08-28) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS
3
21
14
12
15
7
16
13
3
19
20
13
8
7
9
4
2
22
10
1
12
4
9
17
17
15
18
9
6
11
11
9
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLJ10980

HOSE ASSY.,15.90 mm ID x 650.00 mm

1шт.

2

155210A1

O-RING

1шт.

3

153458A1

FLANGE

Split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

6

KHJ1941

FITTING

1шт.

7

KRJ12170

MANIFOLD VALVE

1шт.

8

KRJ11470

SUPPORT

1шт.

9

166352A1

BOLT

6шт.

10

KHJ1941

FITTING

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

12

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

1460 mm (57-1/2 in), Replaces KLJ11340

2шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

14

KHJ1941

FITTING

1шт.

15

KRJ12170

MANIFOLD VALVE

1шт.

16

KRJ16050

SUPPORT

1шт.

17

166352A1

BOLT

6шт.

18

169040A1

ADAPTER

Incl. 19

1шт.

19

154523A1

O-RING

1шт.

20

KBJ1683

HYDRAULIC HOSE,19.00 mm ID x 680.00 mm

1шт.

21

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 22

1шт.

22

154503A1

O-RING

1шт.
