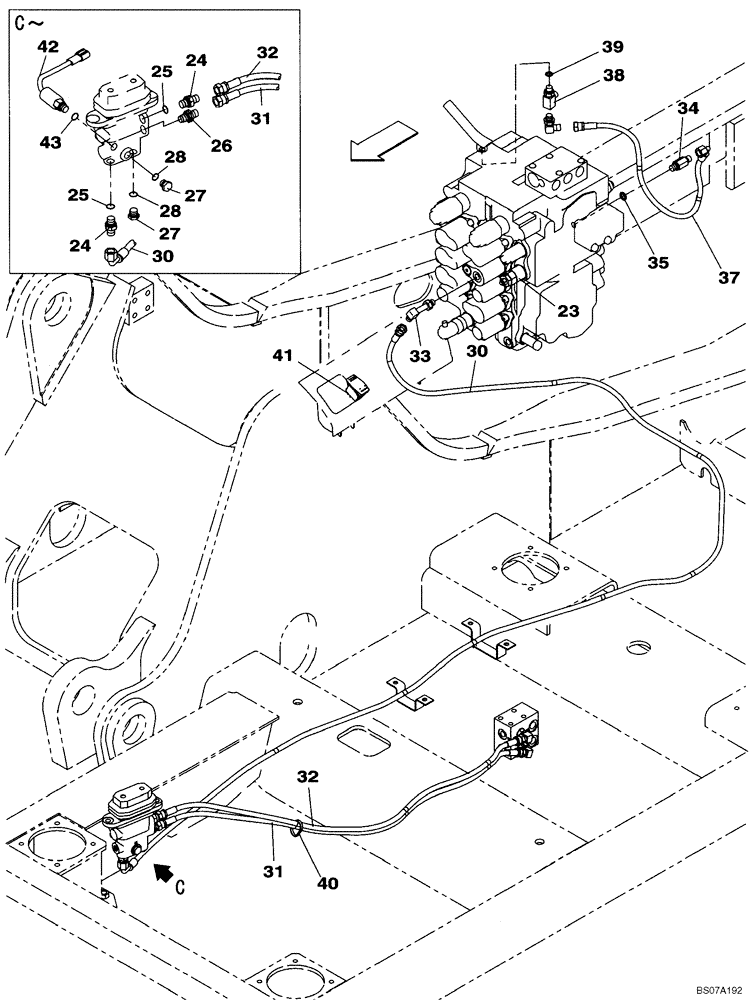

Запчасти Case CX160B (08-27) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

23

KNJ2732

VALVE, PRESSURE RELI

EF

1шт.

24

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 25

2шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

161841A1

HYD CONNECTOR

1шт.

27

159002A1

PLUG

Incl. 28

2шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

KHJ2198

HOSE,6.3mm ID x 2850mm L

2850 mm (112-3/16 in)

1шт.

31

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

32

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

33

KHJ1178

ELBOW

1шт.

34

162554A1

FITTING

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

KHJ2195

HOSE

680 mm (26-3/4 in)

1шт.

38

KHJ2773

TEE

Incl. 39

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

150496A1

MOUNTING CLIP

1шт.

41

KHR14060

SWITCH,Breaker

1шт.

42

KHR10820

PRESSURE SWITCH

Incl. 43

1шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
