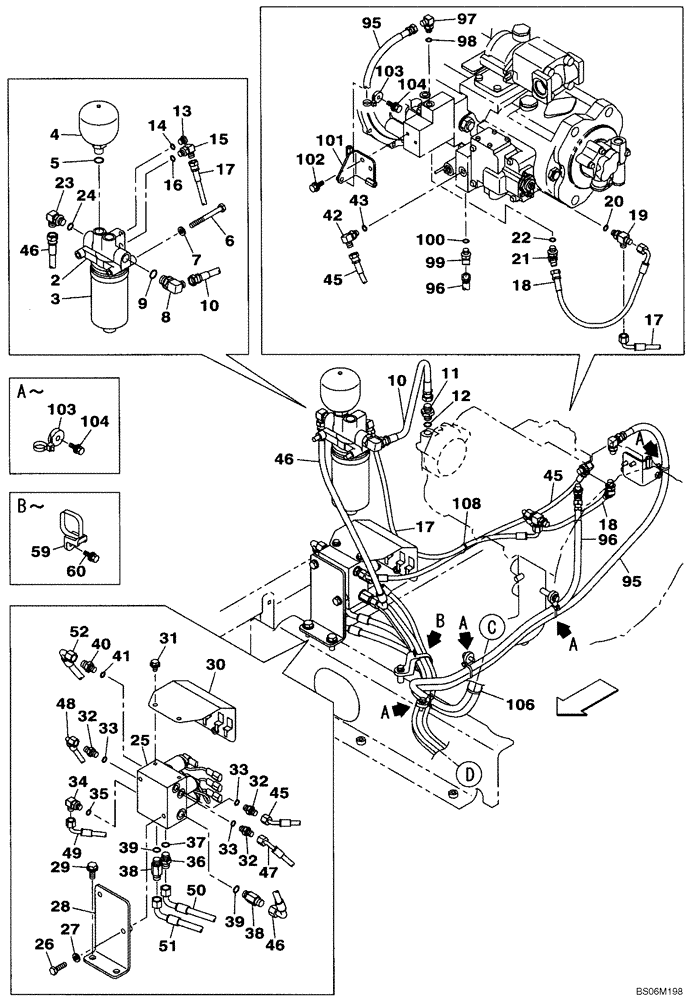

Запчасти Case CX160B (08-23B) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

KHJ17710

FILTER ASSY

Incl. 2 - 5

1шт.

2

KHJ17720

FILTER HEAD

Incl. 3

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

1шт.

4

KHJ2359

ACCUMULATOR

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

7

150409A1

WASHER

2шт.

8

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 9

1шт.

9

154487A1

O-RING

1шт.

10

KHJ2826

HYDRAULIC HOSE,12.70 mm ID x 780.00 mm

1шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 12

1шт.

12

154487A1

O-RING

1шт.

13

159002A1

PLUG

Incl. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

KHJ2249

HOSE

950 mm (37-3/8 in)

1шт.

18

KHJ2342

HOSE

380 mm (15 in)

1шт.

19

159497A1

TEE

Incl. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

150933A1

ELBOW

Incl. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 24

1шт.

24

154475A1

O-RING

1шт.

25

KHJ14520

SOLENOID VALVE

See Figure 08-73

1шт.

26

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

27

150409A1

WASHER

2шт.

28

KHJ14960

SUPPORT

1шт.

29

166352A1

BOLT

2шт.

30

KHJ16220

COVER

1шт.

31

166345A1

BOLT

2шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 33

3шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 37

1шт.

37

154475A1

O-RING

1шт.

38

159226A1

ADAPTER

Incl. 39

2шт.

39

154475A1

O-RING

1шт.

40

152747A1

ADAPTER

Incl. 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

42

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 43

1шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

KHJ15480

HYDRAULIC HOSE

1050 mm (41-5/16 in)

1шт.

46

KHJ2148

HOSE

550 mm (21-5/8 in)

1шт.

47

KHJ12320

HYDRAULIC HOSE

1650 mm (64-15/16 in)

1шт.

48

KHJ2524

HOSE

1950 mm (76-3/4 in)

1шт.

49

KHJ2171

HOSE

2650 mm (104-5/16 in)

1шт.

50

KHJ14280

HYDRAULIC HOSE

3600 mm (141-3/4 in)

1шт.

51

KHJ11580

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

52

KHJ2746

HOSE

3300 mm (129-15/16 in)

1шт.

59

KHR2581

CLAMP

1шт.

60

KHJ1215

BOLT,Spcl

1шт.

95

KHJ2692

HYDRAULIC HOSE,6.30 mm ID x 2700.00 mm

1шт.

96

KHJ2726

HYDRAULIC HOSE,6.30 mm ID x 2100.00 mm

1шт.

97

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 98

1шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

150933A1

ELBOW

Incl. 100

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

KRJ16150

SUPPORT

1шт.

102

166350A1

BOLT

2шт.

103

KHR2584

CLAMP

4шт.

104

KHJ1215

BOLT,Spcl

4шт.

106

150496A1

MOUNTING CLIP

1шт.

108

150496A1

MOUNTING CLIP

1шт.
