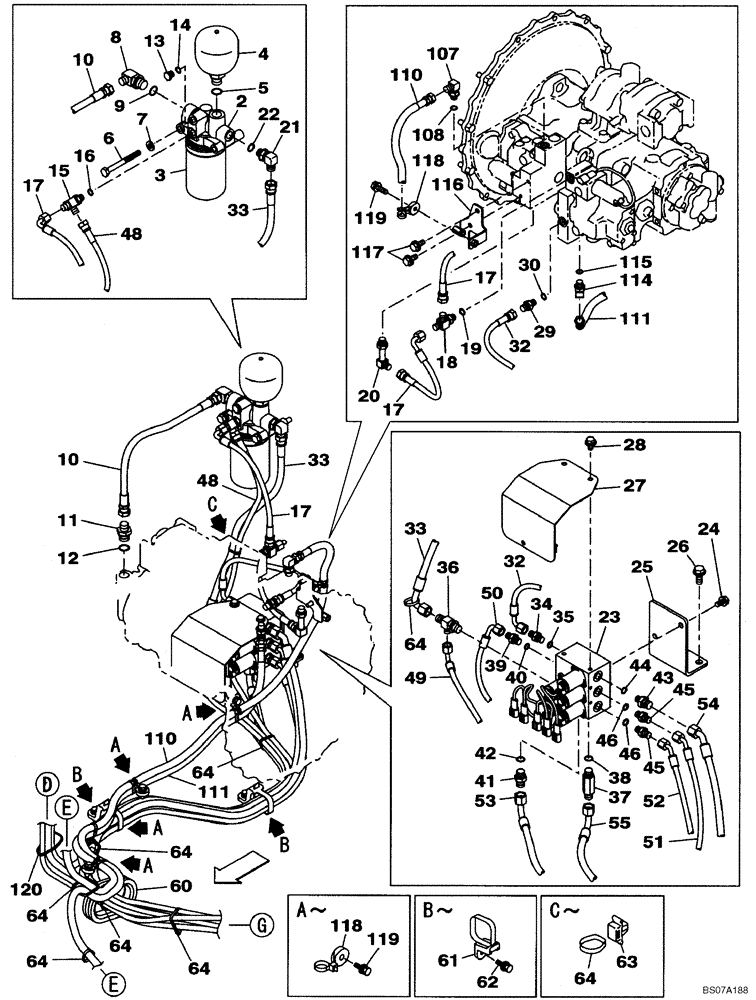

Запчасти Case CX160B (08-23A) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

KHJ10930

ACCUMULATOR

Incl. 2 - 5

1шт.

2

KHJ10940

MANIFOLD VALVE

Incl. 3

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

Replaces KHJ10950

1шт.

4

KHJ2359

ACCUMULATOR

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

7

150409A1

WASHER

2шт.

8

157935A1

ELBOW

Incl. 9

1шт.

9

154487A1

O-RING

1шт.

10

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

11

161084A1

ADAPTER

Incl. 12

1шт.

12

154487A1

O-RING

1шт.

13

159002A1

PLUG

Incl. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

159497A1

TEE

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

KHJ2238

HOSE

320 mm (12-5/8 in)

2шт.

18

159497A1

TEE

Incl. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

KHJ1178

ELBOW

1шт.

21

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 22

1шт.

22

154475A1

O-RING

1шт.

23

KHJ14520

SOLENOID VALVE

See Figure 08-73

1шт.

24

166351A1

BOLT,Sems, M10 x 20mm

2шт.

25

KNJ13630

BRACKET

1шт.

26

166352A1

BOLT

2шт.

27

KHJ16220

COVER

1шт.

28

166345A1

BOLT

2шт.

29

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

KHJ2179

HOSE

450 mm (17-3/4 in)

1шт.

33

KHJ2412

HOSE,9.5 mm ID x 650.00 mm

650 mm (25-5/8 in)

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

163422A1

TEE

1шт.

37

KAJ2351

FITTING

1шт.

38

154475A1

O-RING

1шт.

39

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 42

1шт.

42

154475A1

O-RING

1шт.

43

152747A1

ADAPTER

Incl. 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 46

2шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

48

KHJ2080

HOSE,6.3 mm ID x 3150.00 mm

3150 mm (124 in)

1шт.

49

KHJ2134

HOSE,6.3mm ID x 2250mm L

1шт.

50

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

3100 mm (122 in)

1шт.

51

KHJ16240

HYDRAULIC HOSE,6.35 mm ID x 2600.00 mm

1шт.

52

KHJ16250

HYDRAULIC HOSE,6.35 mm ID x 3250.00 mm

1шт.

53

KHJ2107

HOSE,9.5mm ID x 2400mm L

2400 mm (94-1/2 in)

1шт.

54

KHJ16230

HYDRAULIC HOSE,9.52 mm ID x 3200.00 mm

1шт.

55

KHJ16260

HYDRAULIC HOSE,9.52 mm ID x 1750.00 mm

1шт.

60

KNJ2988

RUBBER SEAL

1шт.

61

KHR2581

CLAMP

2шт.

62

KHJ1215

BOLT,Spcl

2шт.

63

KHR10220

MOUNTING CLIP

1шт.

64

150496A1

MOUNTING CLIP

1шт.

107

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 108

1шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

110

KHJ17040

HYDRAULIC HOSE

1шт.

111

KHJ17050

HYDRAULIC HOSE

1шт.

114

150933A1

ELBOW

Incl. 115

1шт.

115

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

116

KNJ12210

BRACKET

1шт.

117

166350A1

BOLT

2шт.

118

KHR2584

CLAMP

5шт.

119

KHJ1215

BOLT,Spcl

5шт.

120

150496A1

MOUNTING CLIP

1шт.
