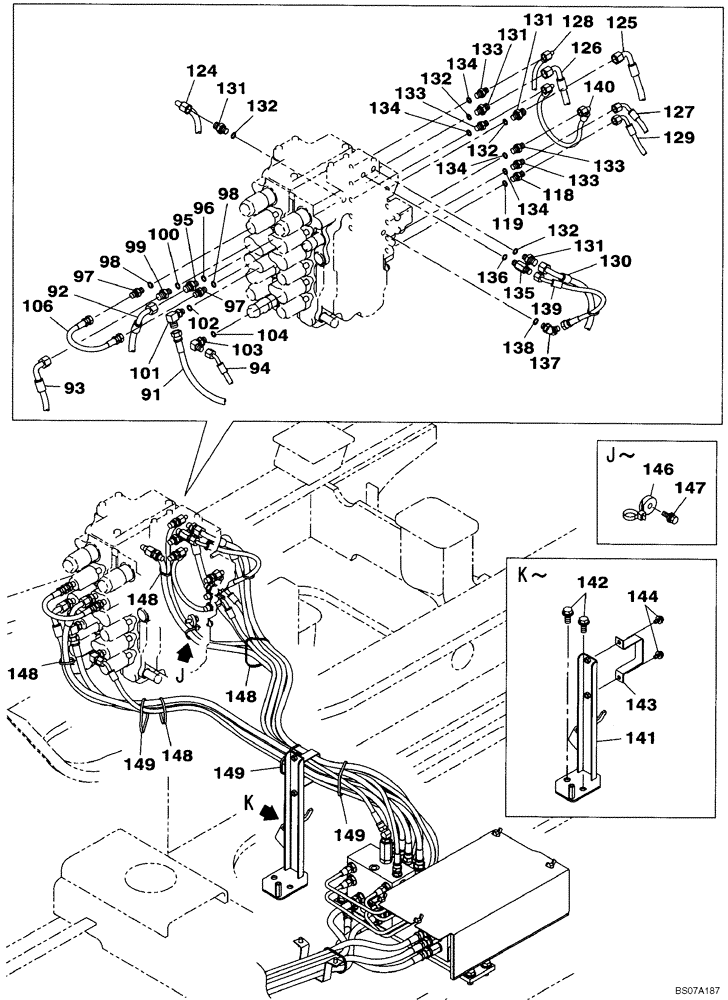

Запчасти Case CX160B (08-22) - PILOT CONTROL LINES, CONTROL VALVE - TWO WAY (08) - HYDRAULICS

91

KHJ2307

HOSE,9.5mm ID x 1200mm L

1шт.

92

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

93

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

94

KHJ16190

HYDRAULIC HOSE

1100 mm (43-5/16 in)

1шт.

95

152747A1

ADAPTER

Incl. 96

1шт.

96

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 98

2шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

152747A1

ADAPTER

Incl. 100

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

153559A1

ELBOW

Incl. 102

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 104

1шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

KHJ2419

HYDRAULIC HOSE,6.30 mm ID x 270.00 mm

1шт.

118

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 119

1шт.

119

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

124

KHJ16210

HYDRAULIC HOSE

1450 mm (57 in)

1шт.

125

KHJ2624

HOSE

1200 mm (47-1/4 in)

1шт.

126

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

127

KHJ2146

HOSE

1200 mm (47-1/4 in)

1шт.

128

KHJ2477

HOSE

1900 mm (63 in)

1шт.

129

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

900 mm (35-7/16 in)

1шт.

130

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

131

152747A1

ADAPTER

Incl. 132

3-4шт.

132

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

133

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 134

4-5шт.

134

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

135

162554A1

FITTING

Incl. 136

1шт.

136

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

137

150933A1

ELBOW

Incl. 138

1шт.

138

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

139

KHJ16200

HYDRAULIC HOSE,6.35 mm ID x 400.00 mm

1шт.

140

KHJ13820

HYDRAULIC HOSE,6.35 mm ID x 420.00 mm

1шт.

141

KNJ11780

BRACKET

1шт.

142

166352A1

BOLT

2шт.

143

161095A1

CLAMP

1шт.

144

166345A1

BOLT

2шт.

146

KHR2584

CLAMP

1шт.

147

KHJ1215

BOLT,Spcl

1шт.

148

150496A1

MOUNTING CLIP

4шт.

149

150498A1

MOUNTING CLIP

3шт.
