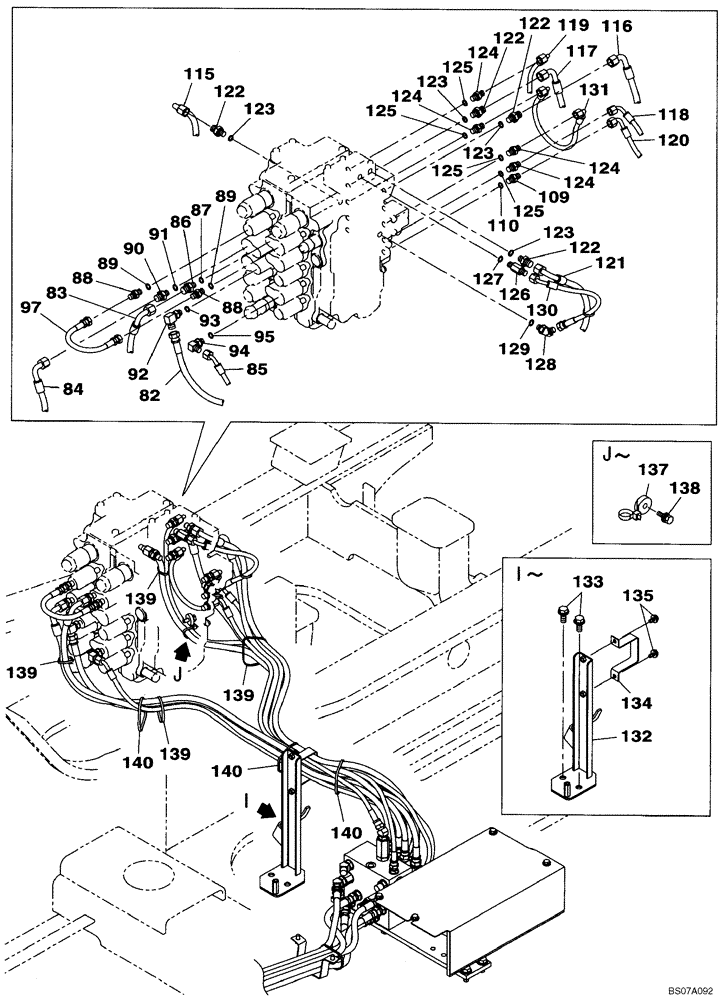

Запчасти Case CX160B (08-18) - PILOT CONTROL LINES, CONTROL VALVE - STANDARD (08) - HYDRAULICS

82

KHJ2307

HOSE,9.5mm ID x 1200mm L

1шт.

83

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

84

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

85

KHJ16190

HYDRAULIC HOSE

1100 mm (43-5/16 in)

1шт.

86

152747A1

ADAPTER

Incl. 87

1шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

88

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 89

2шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

152747A1

ADAPTER

Incl. 91

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

92

153559A1

ELBOW

Incl. 93

1шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 95

1шт.

95

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

KHJ2419

HYDRAULIC HOSE,6.30 mm ID x 270.00 mm

1шт.

109

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

115

KHJ16210

HYDRAULIC HOSE

1450 mm (57 in)

1шт.

116

KHJ2624

HOSE

1200 mm (47-1/4 in)

1шт.

117

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

118

KHJ2146

HOSE

1200 mm (47-1/4 in)

1шт.

119

KHJ2477

HOSE

1900 mm (63 in)

1шт.

120

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

900 mm (35-7/16 in)

1шт.

121

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

122

152747A1

ADAPTER

Incl. 123

3-4шт.

123

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

124

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 125

4-5шт.

125

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

126

162554A1

FITTING

Incl. 127

1шт.

127

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

128

150933A1

ELBOW

Incl. 129

1шт.

129

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

130

KHJ16200

HYDRAULIC HOSE,6.35 mm ID x 400.00 mm

1шт.

131

KHJ13820

HYDRAULIC HOSE,6.35 mm ID x 420.00 mm

1шт.

132

KNJ11780

BRACKET

1шт.

133

166352A1

BOLT

2шт.

134

161095A1

CLAMP

1шт.

135

166345A1

BOLT

2шт.

137

KHR2584

CLAMP

1шт.

138

KHJ1215

BOLT,Spcl

1шт.

139

150496A1

MOUNTING CLIP

4шт.

140

150498A1

MOUNTING CLIP

3шт.
