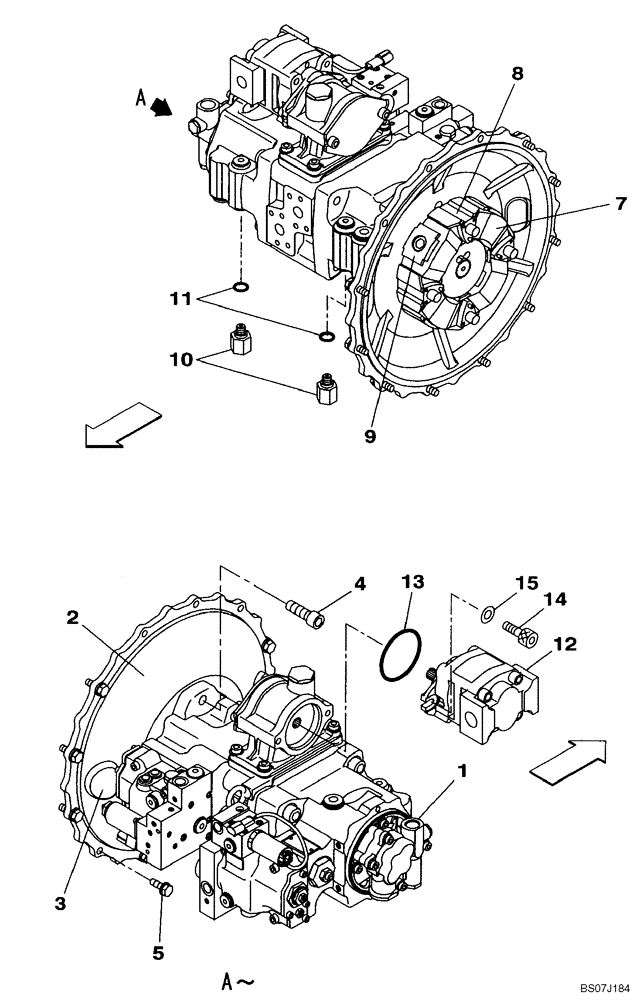

Запчасти Case CX130B (08-04) - PUMP ASSY, HYDRAULIC - OPTIONAL - COUPLING - WITH LOW FLOW AND/OR BLADE (08) - HYDRAULICS

1

KNJ11861

HYDRAULIC PUMP

1шт.

2

KNJ11750

FLANGE

1шт.

3

KHJ2656

GROMMET

2шт.

4

108R016Y045R

BOLT

2шт.

5

166347A1

BOLT,Sems, M10 x 30mm

9шт.

6

KMJ2660

COUPLING FLANGE

Incl. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

8

NSS

NOT SOLD SEPARAT

INSERT

4шт.

9

NSS

NOT SOLD SEPARAT

INSERT

1шт.

10

KHJ18180

STUD

Incl. 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KNJ10650

HYDRAULIC PUMP

See Figure 08-98

1шт.

12

KNJ10650R

REMAN-HYD PUMP

CX130B CRAWLER EXCAVATOR TIER 3, HYDRAULIC - OPTIONAL - COUPLING (3/08-)

1шт.

12

KNJ10650C

CORE-HYDRAULIC PUMP

Return Number

1шт.

13

154697A1

O-RING

1шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

15

150409A1

WASHER

2шт.
