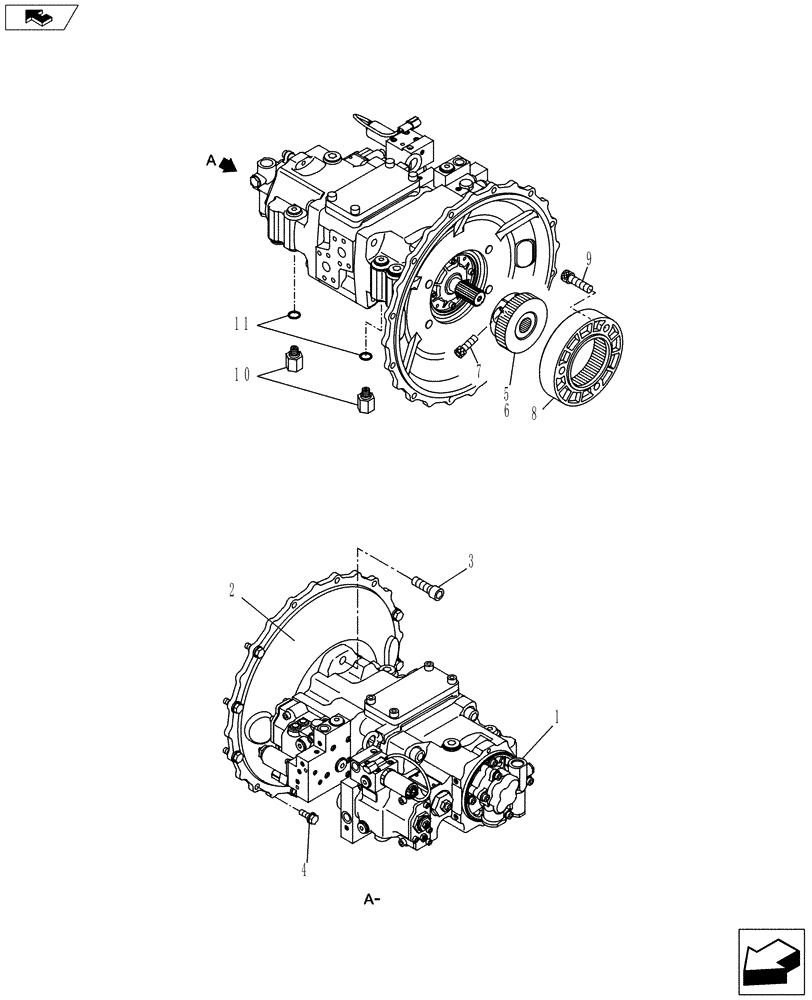

Запчасти Case CX130B (08-03A) - HYDRAULIC PUMP, STANDARD (08) - HYDRAULICS

1

KNJ11851

HYDRAULIC PUMP

1шт.

1

KNJ11851R

REMAN-HYD PUMP

CX130B CRAWLER EXCAVATOR TIER 3, HYDRAULIC PUMP, STANDARD (3/08-)

1шт.

1

KNJ11851C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KNJ11750

FLANGE

1шт.

3

108R016Y045R

BOLT

2шт.

4

166347A1

BOLT,Sems, M10 x 30mm

12шт.

5

KNJ10641

FLEXIBLE COUPLING

Interchangeable with ref. KNJ19710 ref. 9 not included

1шт.

5

KNJ19710

FLEXIBLE COUPLING

Interchangeable with ref. KNJ10641 ref. 9 included

1шт.

6

KHJ2656

GROMMET

Rubber

1шт.

7

KNJ11380

BOLT

1шт.

8

KNJ11390

FLANGE

1шт.

9

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

SOC HD M14X50 12.9 ZND

3шт.

10

KHJ18180

STUD

Incl 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.
