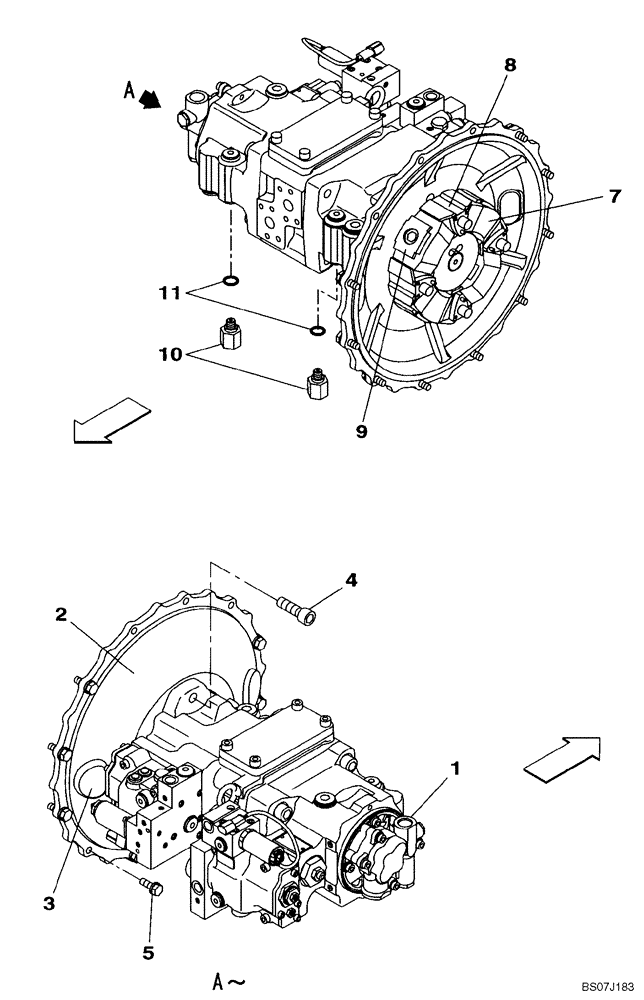

Запчасти Case CX130B (08-03) - PUMP ASSY, HYDRAULIC - STANDARD - COUPLING - W/O LOW FLOW AND/OR BLADE (08) - HYDRAULICS

1

KNJ11851

HYDRAULIC PUMP

See Figures 08-03 [01] - 08-03 [05], Replaces KNJ11850

1шт.

1

KNJ11851R

REMAN-HYD PUMP

CX130B CRAWLER EXCAVATOR TIER 3, HYDRAULIC - STANDARD - COUPLING (3/08-)

1шт.

1

KNJ11851C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KNJ11750

FLANGE

1шт.

3

KHJ2656

GROMMET

2шт.

4

108R016Y045R

BOLT

2шт.

5

166347A1

BOLT,Sems, M10 x 30mm

9шт.

6

KMJ2660

COUPLING FLANGE

Incl. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

8

NSS

NOT SOLD SEPARAT

INSERT

4шт.

9

NSS

NOT SOLD SEPARAT

INSERT

1шт.

10

KHJ18180

STUD

Incl. 11, See Figure 04-05, Ref. 9 For Sensor

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
