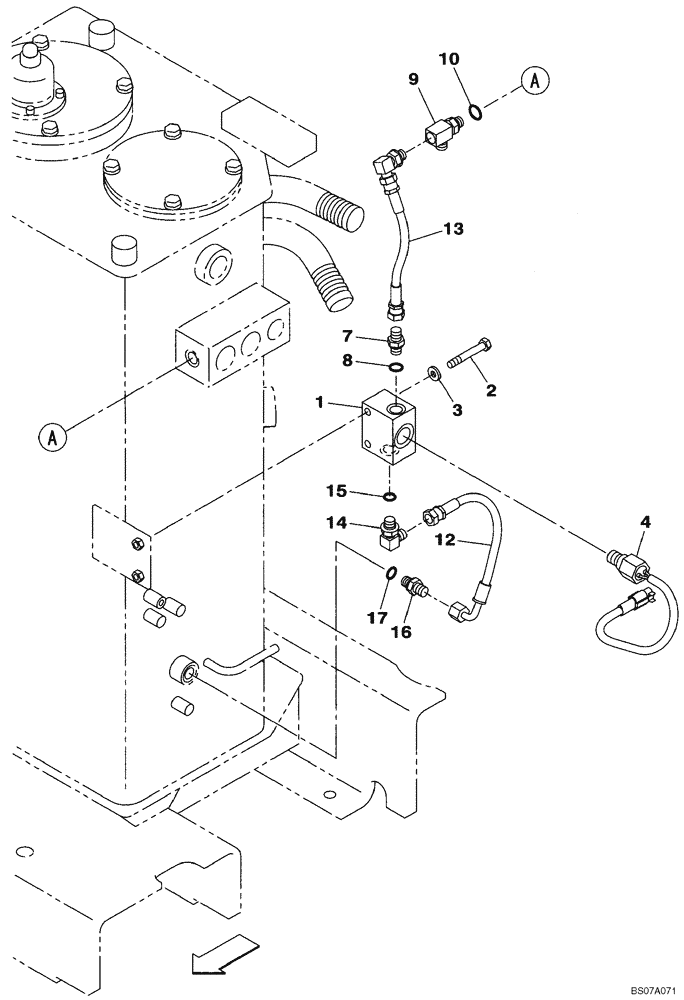

Запчасти Case CX130B (08-02) - HYDRAULIC RESERVOIR - PRESSURE SWITCH (08) - HYDRAULICS

1

KHJ11730

MANIFOLD VALVE

1шт.

2

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

3

153081A1

WASHER

2шт.

4

KHR14470

PRESSURE SWITCH

Pressure

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

KHJ2773

TEE

Incl. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KHJ2292

HOSE

280 mm (11 in)

1шт.

13

KHJ16270

HOSE

210 mm (8-1/4 in)

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
