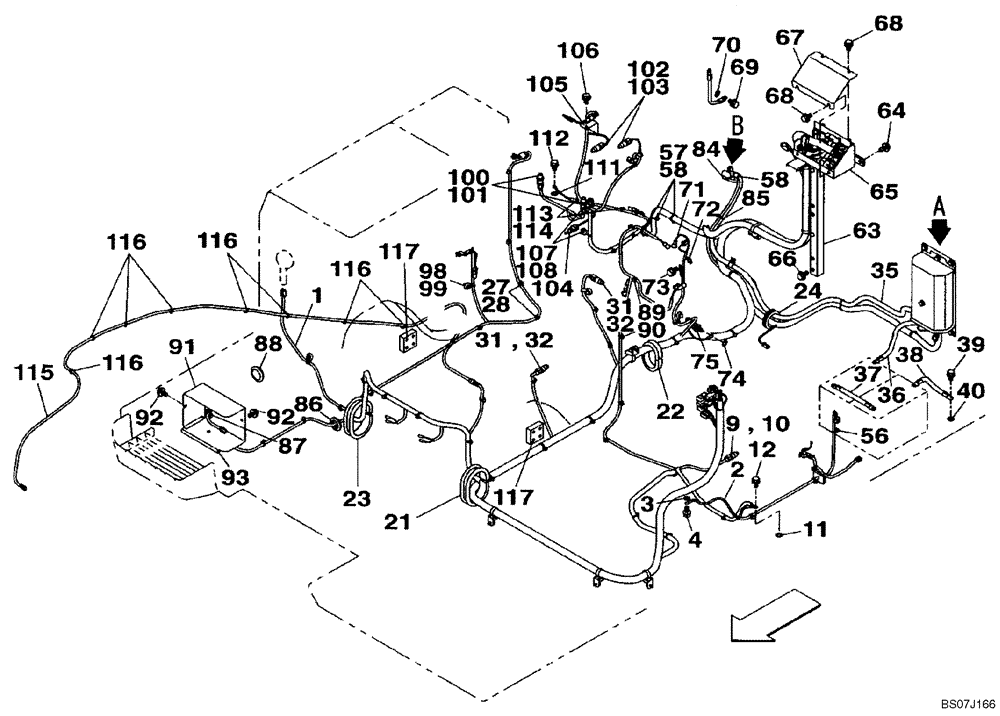

Запчасти Case CX130B (04-05) - HARNESS, MAIN - CHASSIS, UPPER STRUCTURE (04) - ELECTRICAL SYSTEMS

1

KNR10850

WIRE HARNESS

HARNESS, WIRING

1шт.

2

KHR11090

GROUND CABLE

1шт.

2

KHR28730

GROUND CABLE

For ROPS Cab Only

1шт.

3

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

4

167518A1

BOLT

1шт.

9

KHR10300

SENSOR,5 MPa

Pilot Pressure Incl. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

12

167518A1

BOLT

1шт.

21

KAJ2827

GROMMET

CUSHION, RUBBER

1шт.

22

152579A1

CUSHION

RUBBER

1шт.

23

KEJ0501

GROMMET

GROMMET, RUBBER

1шт.

24

152117A1

GROMMET

RUBBER

1шт.

27

KHR10220

MOUNTING CLIP

10шт.

28

150496A1

MOUNTING CLIP

10шт.

31

KHR10300

SENSOR,5 MPa

Pilot Pressure Incl. 32

2шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

35

KHR12920

ELECTRIC CABLE

Battery

1шт.

36

KHR13910

POS BATTERY CABLE

Battery

1шт.

37

KHR15070

NEG BATTERY CABLE

Battery

1шт.

38

KHR12370

POS BATTERY CABLE

Battery, Replaces KHR13920

1шт.

39

167518A1

BOLT

1шт.

40

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

41

KHR14980

BRACKET

1шт.

42

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

48

REF

INSTRUCTION

Relay and Cover; See Figure 04-06

1шт.

56

150496A1

MOUNTING CLIP

5шт.

57

150496A1

MOUNTING CLIP

1шт.

58

KHR10220

MOUNTING CLIP

3шт.

59

150496A1

MOUNTING CLIP

4шт.

63

KLR10190

SUPPORT ASSY.

1шт.

64

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

65

KLR10170

BRACKET

1шт.

66

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

67

KLR10180

COVER

1шт.

68

166345A1

BOLT

4шт.

69

KHJ2298

BOLT,Spcl

1шт.

70

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

71

159179A1

PROTECTION CAP

1шт.

72

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

73

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

74

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

75

167518A1

BOLT

1шт.

80

REF

INSTRUCTION

Cap; See Figure 04-06

1шт.

84

159179A1

PROTECTION CAP

1шт.

85

150496A1

MOUNTING CLIP

2шт.

86

165984A1

GROMMET

1шт.

87

159656A1

GROMMET

1шт.

88

KHN11510

GROMMET

1шт.

89

KHR10220

MOUNTING CLIP

8шт.

90

150496A1

MOUNTING CLIP

8шт.

91

KHR14420

BRACKET

1шт.

92

166345A1

BOLT

2шт.

93

KHR14920

SEAL PROTECTION

1шт.

98

KHR2584

CLAMP

1шт.

99

KHJ1215

BOLT,Spcl

1шт.

100

KHR10290

SENSOR

SENSOR PRESS. Incl. 101

2шт.

101

154483A1

O-RING

Replaces UCP0101

1шт.

102

KHR10300

SENSOR,5 MPa

Pilot Pressure Incl. 103

2шт.

103

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

104

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

105

KLR10230

BRACKET

1шт.

106

166345A1

BOLT

1шт.

107

KHR2584

CLAMP

5шт.

108

KHJ1215

BOLT,Spcl

5шт.

111

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

112

167518A1

BOLT

1шт.

113

KHR10220

MOUNTING CLIP

7шт.

114

150496A1

MOUNTING CLIP

7шт.

115

KHR11160

WIRE HARNESS

1шт.

116

150496A1

MOUNTING CLIP

10шт.
