(04-02) - ELECTRICAL ACCESSORIES - ENGINE - ELECTRONIC CONTROLLED

Запчасти Case CX130B (04-02) - ELECTRICAL ACCESSORIES - ENGINE - ELECTRONIC CONTROLLED (04) - ELECTRICAL SYSTEMS

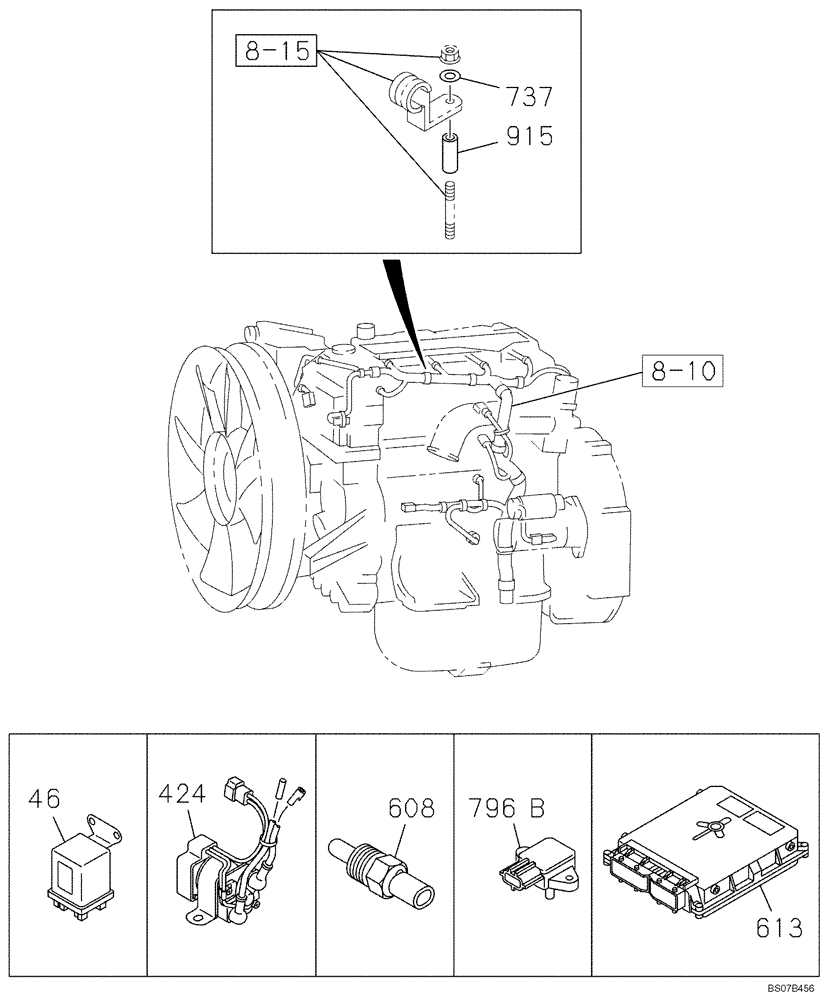

Схема запчастей Case CX130B - (04-02) - ELECTRICAL ACCESSORIES - ENGINE - ELECTRONIC CONTROLLED (04) - ELECTRICAL SYSTEMS
796b
46
608
613
424
8-15
8-10
737
915
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

8-10

REF

INSTRUCTION

See Figure 04-04

1шт.

8-15

REF

INSTRUCTION

See Figure 04-04A

1шт.

46

87378549

SENSOR

Air Temperature

1шт.

424

72217466

RELAY

Starter

1шт.

608

87378549

SENSOR

Air Temperature

1шт.

613

84541056

ECU

Engine

1шт.

613

84541056R

REMAN ELECT CONTROL

CX130B CRAWLER EXCAVATOR TIER 3, ENGINE (3/08-)

1шт.

613

84541056C

CORE-ELECTRONIC CONT

Return Number

1шт.

737

87600313

WASHER

1шт.

796b

87379337

SENSOR

Pressure

1шт.

915

87600421

SPACER

1шт.
