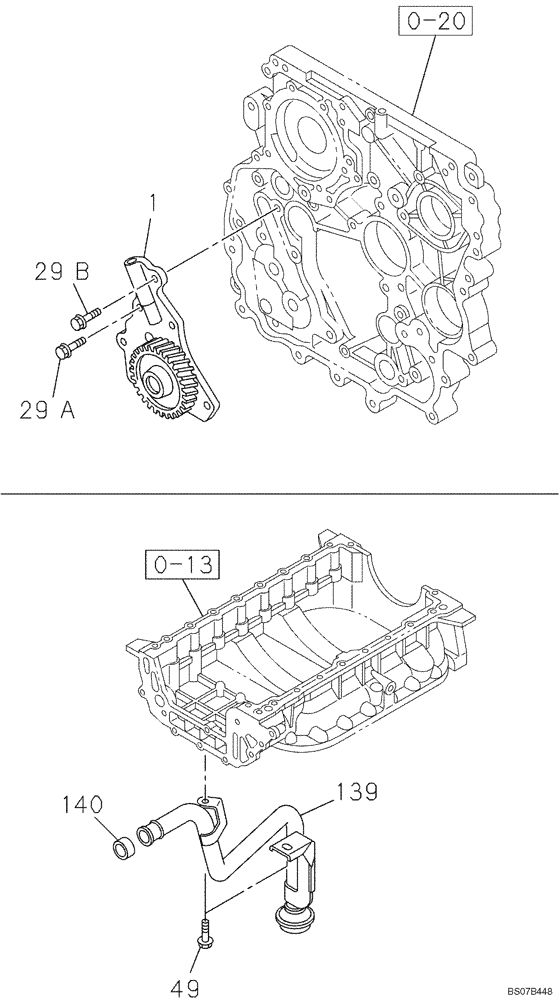

Запчасти Case CX130B (02-30) - OIL PUMP (02) - ENGINE

0-13

REF

INSTRUCTION

See Figure 02-14

1шт.

0-20

REF

INSTRUCTION

See Figure 02-18

1шт.

1

87598864

ENGINE OIL PUMP

1шт.

1

84591275R

REMAN-ENG OIL PUMP

CX130B CRAWLER EXCAVATOR TIER 3 (3/08-), Reman for New PN 87598864

1шт.

1

84591275C

CORE-ENGINE OIL PUMP

Return Number

1шт.

29a

87596042

BOLT

4шт.

29b

87595806

BOLT

2шт.

49

87595866

BOLT

2шт.

139

87598930

PIPE

1шт.

140

87598932

GASKET

1шт.
