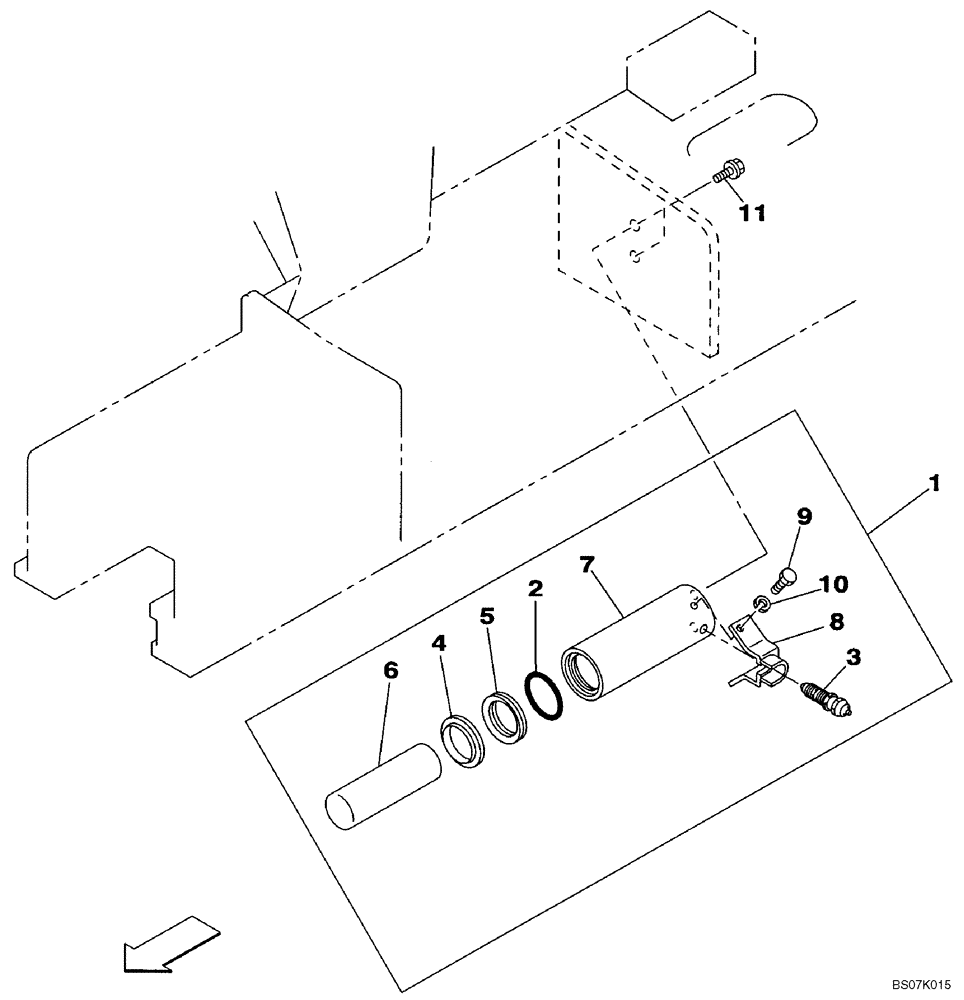

Запчасти Case CX130B (05-15) - TRACK - ADJUSTER CYLINDER (11) - TRACKS/STEERING

1

150903A1

CYLINDER

Track Adjuster, Incl. 2 - 11

2шт.

2

154656A1

O-RING

2шт.

3

150107A1

LUBE NIPPLE

2шт.

4

150557A1

SEAL,65mm ID x 79mm OD x 11mm Thk

2шт.

5

KHA10090

BACK-UP RING

OD 75mm - ID 65mm. - Thk 1.9mm

2шт.

6

150756A1

JACK PISTON

2шт.

7

150907A1

CYLINDER ASSY.

2шт.

8

151234A1

BRACKET

2шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

10

892-11010

LOCK WASHER,M10

4шт.

11

165929A1

BOLT,Sems, M16

4шт.
