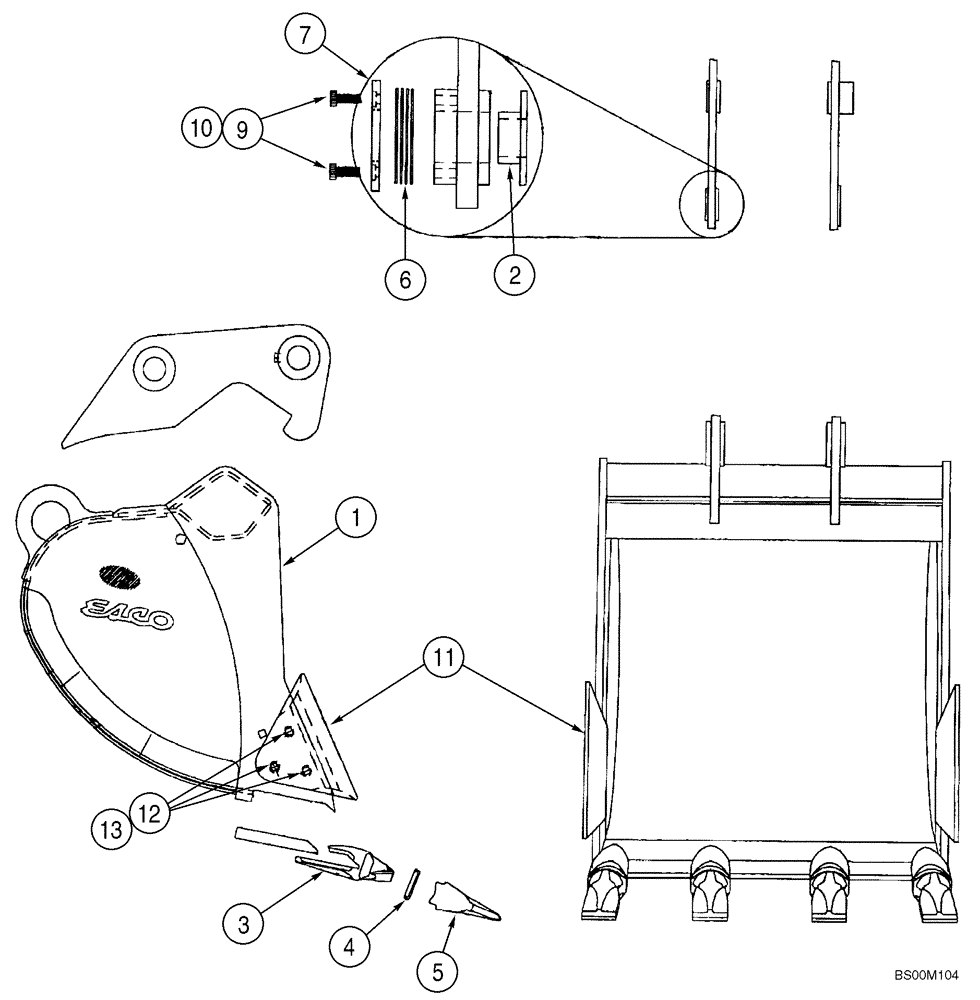

Запчасти Case CX130B (09-78) - BUCKETS, ESCO - HEAVY DUTY BUCKETS (09) - CHASSIS/ATTACHMENTS

1

371454A1

BUCKET

0.50 cu yd, With 4 Teeth

1шт.

1

371455A1

BUCKET

0.65 cu yd, With 4 Teeth

1шт.

1

371456A1

BUCKET

0.81 cu yd, With 5 Teeth

1шт.

1

371457A1

BUCKET

0.89 cu yd, With 5 Teeth

1шт.

2

372025A1

BUSHING

1шт.

3

233793A1

ADAPTER

4-5шт.

4

233795A1

BUCKET TOOTH KEY

4-5шт.

5

233794A1

BUCKET TOOTH

4-5шт.

6

378626A1

SHIM

6шт.

7

378627A1

PLATE

1шт.

8

378628A1

PIN

Not Illustrated

2шт.

9

892-11012

LOCK WASHER,M12

4шт.

10

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

378649A1

KIT

Shroud, Incl. 11 - 13

1шт.

11

244961A1

SHROUD

2шт.

12

232-41314

LOCK NUT,7/8"-9, GC

6шт.

13

320-21444

CARRIAGE BOLT,#3, 7/8" - 9 x 2 3/4", Gr 8

6шт.

378641A1

KIT

Adjustment, Incl. 2, 6 - 10

1шт.
