Запчасти Case CX130B (09-59) - DECAL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

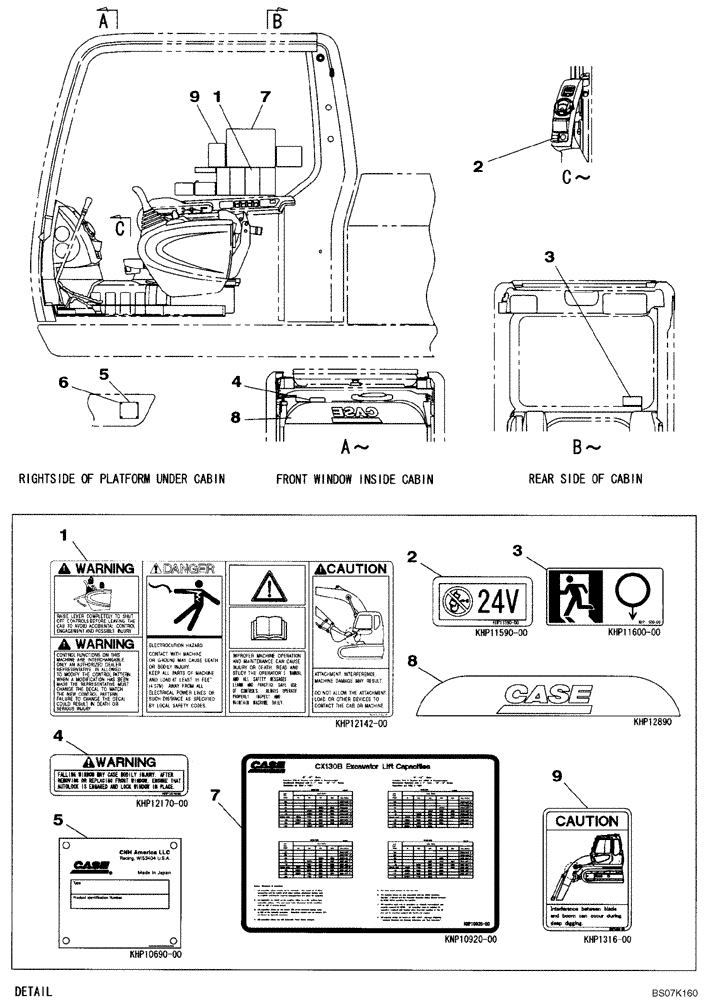

Схема запчастей Case CX130B - (09-59) - DECAL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS
4
5
7
9
3
8
2
9
4
1
2
6
1
7
8
5
3

Артикул

Название

Примечание

Количество

1

KHP12142

DECAL

Warning, Danger, Caution

1шт.

2

KHP11590

DECAL

24 Volt, Serial Range: -2

1шт.

3

KHP11600

DECAL

Right Side of Cab

1шт.

4

KHP12170

DECAL

Warning, Falling Window May Caused Bodily Injury

1шт.

5

NSS

NOT SOLD SEPARAT

NAME PLATE

1шт.

6

NSS

NOT SOLD SEPARAT

RIVET, Blind

4шт.

7

KNP11470

DECAL

Lift Capacities

1шт.

8

KHP12890

DECAL

Case Logo

1шт.

9

KHP1316

WARNING DECAL

Warning

1шт.

Выбрано товаров: 9
