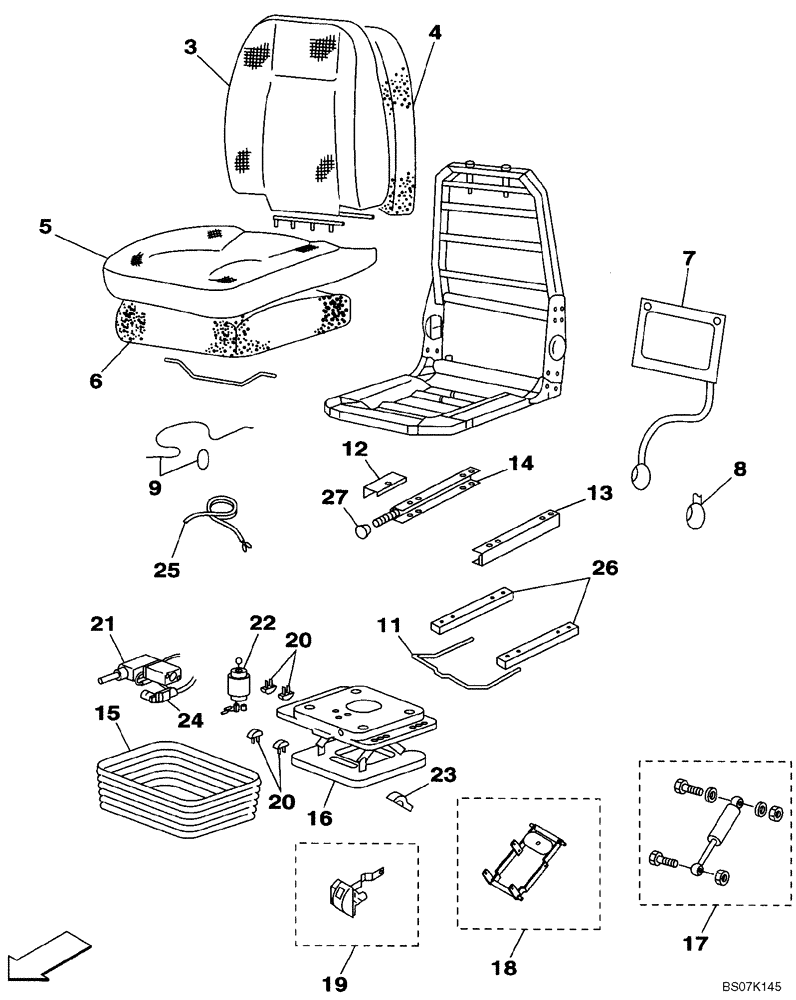

Запчасти Case CX130B (09-42) - SEAT MECHANICAL - AIR SEAT (09) - CHASSIS/ATTACHMENTS

87706000

DRIVER SEAT

Incl. 3 - 27 & Ref. 10, 28 in Fig. 09-41.

1шт.

3

87706002

DRIVER'S SEAT COVER

SEAT COVER

1шт.

4

H4841461

FOAM

SEAT CUSHION

1шт.

5

76095004

DRIVER'S SEAT COVER

1шт.

6

J4841462

FOAM

SEAT CUSHION

1шт.

7

87706003

KIT

KIT, LUMBAR, Incl. 8

1шт.

8

87706099

SEAT

KIT, LUMBAR

1шт.

9

71456224

CABLE

Recliner CablE

1шт.

11

6550485

HANDLE

1шт.

12

6550487

COWL

1шт.

13

6550488

SPACER

1шт.

14

6550489

CHANNEL

1шт.

15

6550490

BELLOWS

BELLOWS

1шт.

16

87706004

SUSPENSION

Incl. 17 - 25

1шт.

17

76095011

KIT

Damper

1шт.

18

6550491

LEVER

1шт.

19

76095015

KIT

Ride Indicator

1шт.

20

76095010

KIT

Up Stop/Bump Stop

2шт.

21

87706005

COMPRESSOR

1шт.

22

76095009

KIT

Air Spring

1шт.

23

6550500

LEVER

1шт.

24

76095016

KIT

Switch, Up/Down

1шт.

25

87706010

ELECTRIC CABLE

1шт.

26

6550496

KIT

1шт.

27

6550497

HANDLE

1шт.
