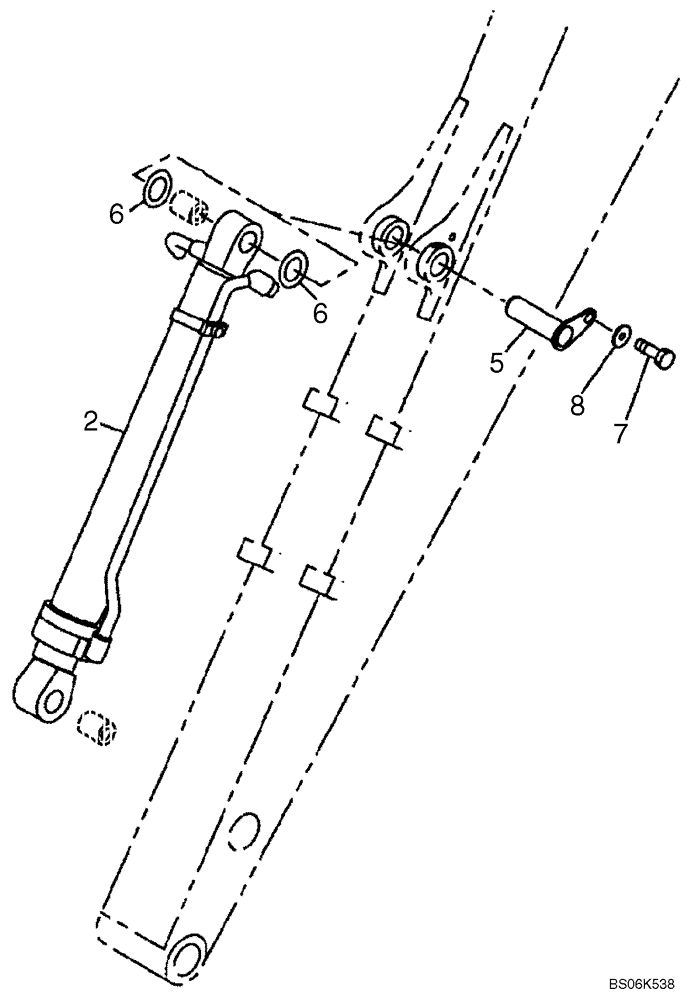

Запчасти Case CX130B (09-40) - BUCKET CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

KNV12541

BUCKET CYLINDER

See Figure 08-86, Replaces KNV12540

1шт.

KNV12541R

REMAN-HYD CYLINDER

Bucket

1шт.

KNV12541C

CORE-HYD CYLINDER

Return Number

1шт.

5

KNV13460

PIN

1шт.

6

160734A1

SHIM

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

8

157141A1

WASHER

1шт.
