(09-31) - SEAT AND MOUNTING

Запчасти Case CX130B (09-31) - SEAT AND MOUNTING (09) - CHASSIS/ATTACHMENTS

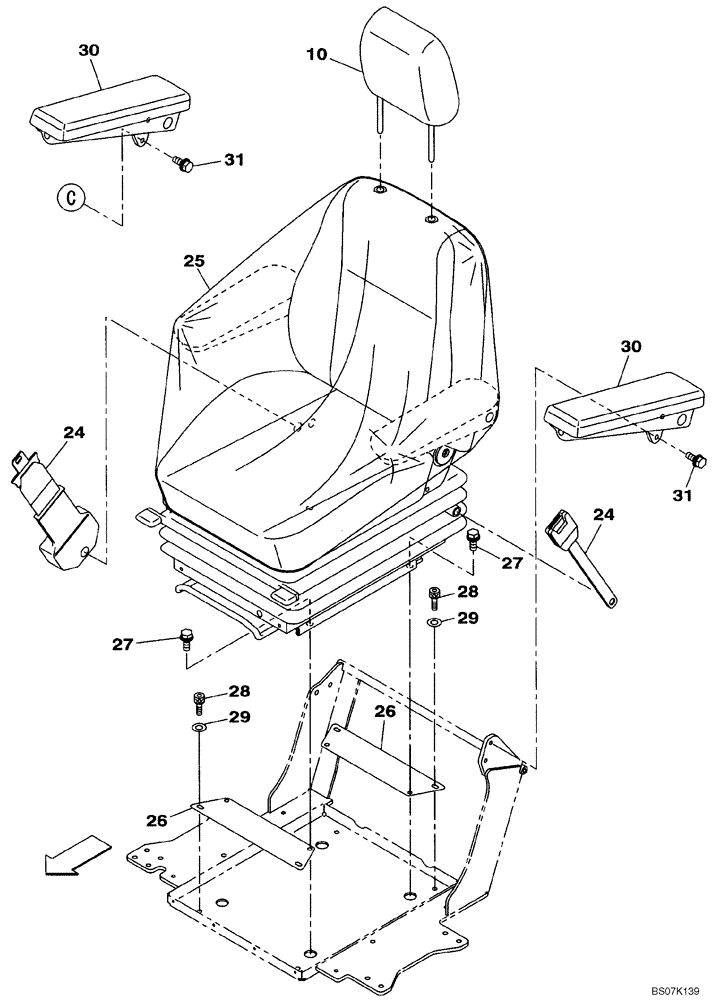

Схема запчастей Case CX130B - (09-31) - SEAT AND MOUNTING (09) - CHASSIS/ATTACHMENTS
31
30
10
29
28
25
31
27
24
28
29
27
24
26
26
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

10

87350977

SEAT HEADREST

1шт.

24

87706012

SEAT BELT

Seat Belt; Includes Hardware

1шт.

25

166121A1

SEAT COVER

1шт.

26

KHN13530

PLATE

2шт.

27

166350A1

BOLT

4шт.

28

108R008Y020R

HEX SOC SCREW

4шт.

29

892-11008

LOCK WASHER,8mm ID

4шт.

30

KHN11720

ARMREST

2шт.

31

KHN17270

BOLT,Spcl

4шт.
