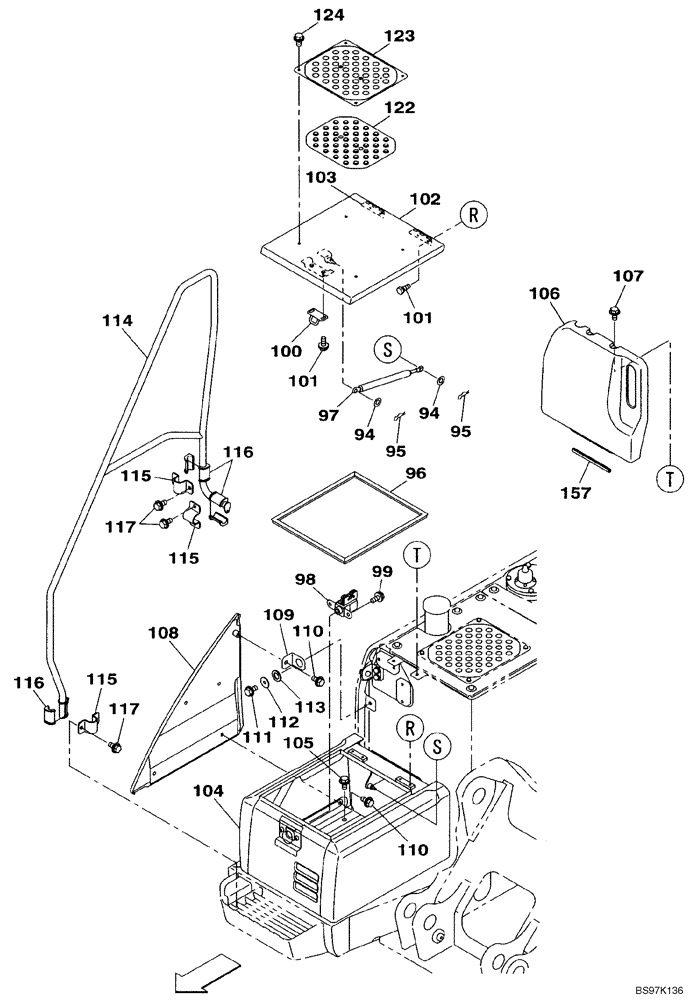

Запчасти Case CX130B (09-23) - STORAGE BOX - INSULATION (09) - CHASSIS/ATTACHMENTS

94

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

95

153077A1

COTTER PIN

2шт.

96

KTN1391

SEAL, RUBBER

RUBBER SEAL

1шт.

97

KHN13720

GAS STRUT

1шт.

98

KHN12730

LOCK

1шт.

99

166351A1

BOLT,Sems, M10 x 20mm

2шт.

100

KHN12740

SUPPORT

1шт.

101

166350A1

BOLT

2шт.

102

KNN10380G1

COVER

Incl. 103

1шт.

103

KHN3390

HINGE

2шт.

104

KNN10370G1

COVER

1шт.

105

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

106

KNN10390G1

COVER

Replaces KNN10390

1шт.

107

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

108

KHN12710

COVER

1шт.

109

KHN12720

SUPPORT

1шт.

110

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

111

166352A1

BOLT

1шт.

112

162409A1

WASHER

1шт.

113

KHN2061

WASHER

1шт.

114

KHN12681B1

STAY

Replaces KHN12680, KHN12681

1шт.

115

KHN12690

COLLAR

3шт.

116

KHN12700

COLLAR

6шт.

117

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

122

KHN10940

RUBBER PAD

2шт.

123

KHN13510B1

COVER

2шт.

124

KHN13540

BOLT,Spcl

8шт.

157

KHR14920

SEAL PROTECTION

1шт.
