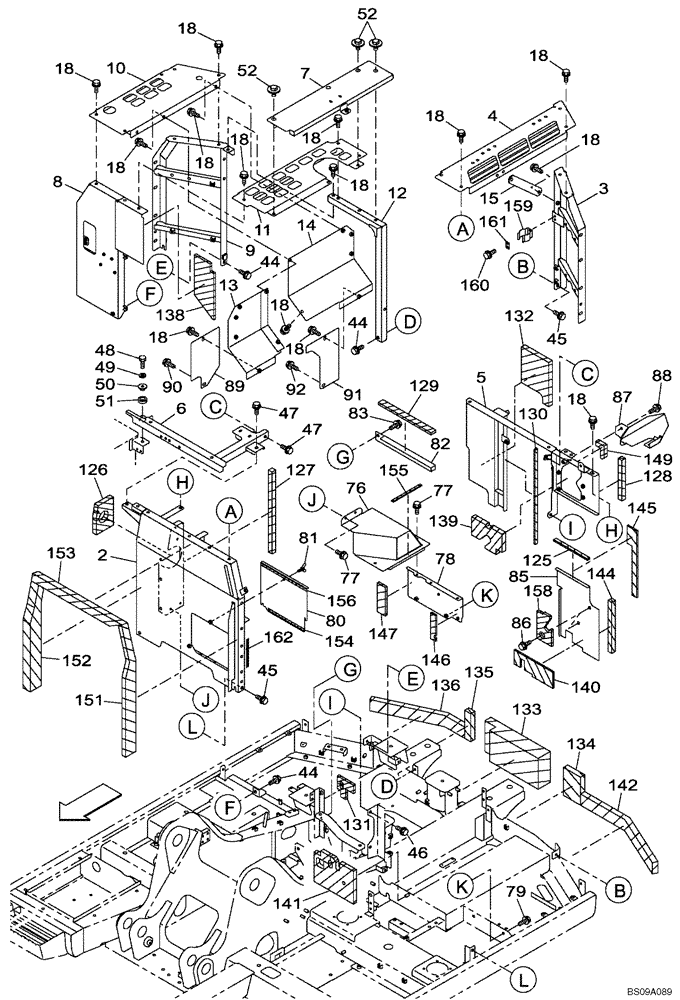

Запчасти Case CX130B (09-20) - FRAMES, COVERS - INSULATION (09) - CHASSIS/ATTACHMENTS

2

KNN11170

BULKHEAD

1шт.

3

KNN11180

SUPPORT ASSY.

1шт.

4

KNN11190

SIEVE

1шт.

5

KNN11200

SUPPORT ASSY.

1шт.

6

KNN11210

SUPPORT ASSY.

1шт.

7

KLN11000

SUPPORT ASSY.

1шт.

8

KNN11480

STEEL PLATE

1шт.

9

KNN11150

SUPPORT ASSY.

1шт.

10

KNN11160

STEEL PLATE

1шт.

11

KLN11060

SUPPORT ASSY.

1шт.

12

KLN11070

SUPPORT ASSY.

1шт.

13

KLN11120

COVER

1шт.

14

KLN11130

COVER

1шт.

15

KLN11230

BRACKET

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

31шт.

44

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

45

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

46

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

47

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

48

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

49

150811A1

WASHER

1шт.

50

KHN18020

SPACER

1шт.

51

KHN18030

WASHER

1шт.

52

KHN12020

BOLT,Spcl

4шт.

76

KNN11320

COVER

Replaces KNN10560

1шт.

77

166350A1

BOLT

4шт.

78

KNN11300

PLATE

1шт.

79

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

80

KHN12760

COVER

1шт.

81

KHN17030

SPECIAL BOLT

3шт.

82

KLN10290

COVER

1шт.

83

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

85

KLN11020

COVER

1шт.

86

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

87

KNN10870

COVER

1шт.

88

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

89

KLN11140

COVER

1шт.

90

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

91

KLN11150

COVER

1шт.

92

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

125

KMN2063

SEAL

1шт.

126

KNN10760

SEAL

1шт.

127

KNN11340

SEAL

1шт.

128

KLN10460

SEAL

1шт.

129

KLN10520

SEAL

1шт.

130

KLN10530

SEAL

1шт.

131

KLN10540

SEAL

1шт.

132

KLN10550

NOISE PROTECTION

2шт.

133

KNN10800

SEAL

1шт.

134

KLN10570

SEAL

1шт.

135

KLN10580

SEAL

1шт.

136

KNN10810

SEAL

1шт.

138

KLN11170

NOISE PROTECTION

1шт.

139

KLN11180

NOISE PROTECTION

1шт.

140

KLN11190

SEAL

1шт.

141

KLN11200

NOISE PROTECTION

1шт.

142

KNN10820

SEAL

1шт.

144

KNN10720

SEAL

1шт.

145

KNN10730

SEAL

1шт.

146

KNN10770

SEAL

1шт.

147

KNN10780

SEAL

1шт.

149

KNN10880

SEAL

1шт.

151

KLN11280

NOISE PROTECTION

1шт.

152

KRN14200

SEAL

1шт.

153

KRN14210

SEAL

1шт.

154

KRN14530

SEAL

1шт.

155

KNN11350

SEAL

1шт.

156

KRN14540

SEAL

1шт.

158

KLN11290

NOISE PROTECTION

1шт.

159

152772A1

HOLDER

Grease Gun

1шт.

160

166350A1

BOLT

2шт.

161

KHN3548

PLATE

1шт.

162

HKN0023

SOFT TRIM

1шт.
