Запчасти Case CX130B (09-14) - OPERATORS COMPARTMENT - CAB REAR PANELS (09) - CHASSIS/ATTACHMENTS

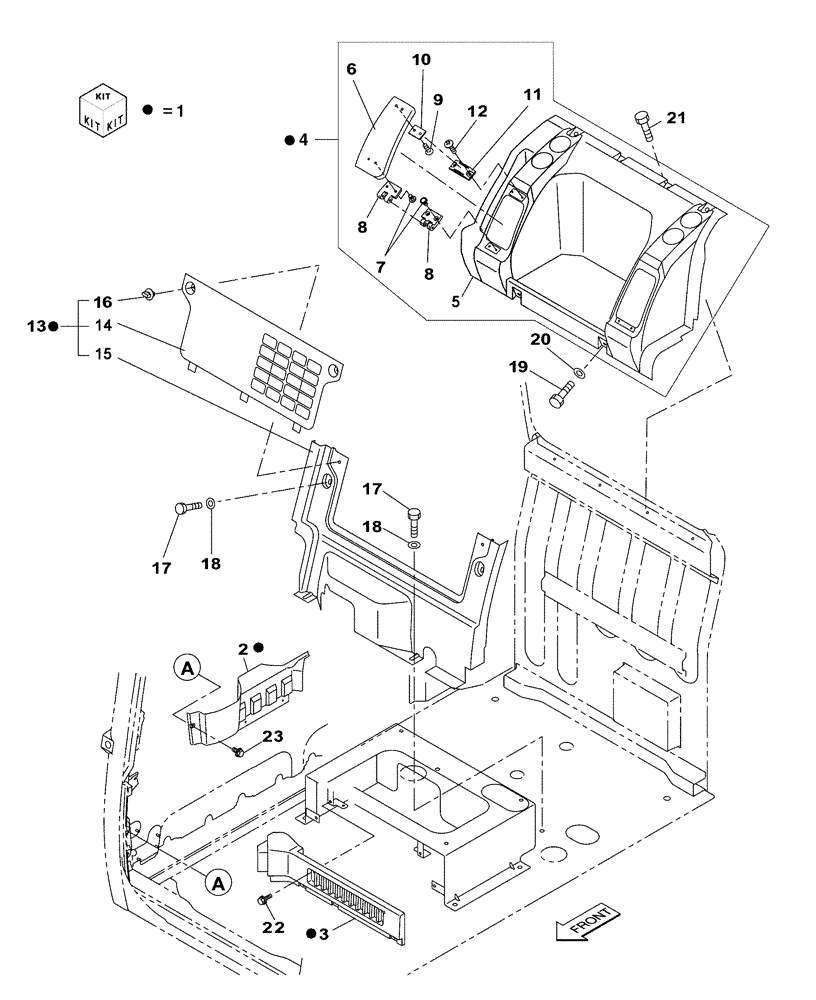

Схема запчастей Case CX130B - (09-14) - OPERATORS COMPARTMENT - CAB REAR PANELS (09) - CHASSIS/ATTACHMENTS
18
1
11
20
1
9
10
16
23
18
7
3
17
12
1
5
19
14
6
8
21
2
1
8
22
13
1
15
17

Артикул

Название

Примечание

Количество

1

KHN17590

KIT

Includes Ref 2-4, 13

1шт.

2

KHN13760

PADDING

1шт.

2

KHN12080

PADDING

For ROPS Cab Only

1шт.

3

KHN13770

COVER

1шт.

3

KHN12190

COVER

For ROPS Cab Only

1шт.

4

KHN12960

PADDING

Includes 5-12

1шт.

4

KHN12940

PADDING

For ROPS Cab Only

1шт.

5

KHN12150

PADDING

1шт.

6

KHN13790

COVER

2шт.

7

KHN17250

SCREW

M5 x 1

8шт.

8

KHN16170

HINGE

2шт.

9

KHN16190

SCREW

4шт.

10

KHN2334

PLATE

2шт.

11

KHN2333

MAGNET

2шт.

12

KHN16180

SCREW

4шт.

13

KHN13871

PADDING

Includes Ref. 14-16

1шт.

13

KHN12951

PADDING

For ROPS Cab Only

1шт.

14

KHN18200

COVER

1шт.

15

KHN18190

SUPPORT

1шт.

16

KHN18180

CLIP

2шт.

17

KHN2309

BOLT,Spcl

4шт.

18

KHN2312

WASHER

4шт.

19

KHN2309

BOLT,Spcl

2шт.

20

KHN2312

WASHER

2шт.

21

KHN2132

BOLT,Hex Flg Hd, M6 x 16

4шт.

22

KHN2132

BOLT,Hex Flg Hd, M6 x 16

4шт.

23

KHN2132

BOLT,Hex Flg Hd, M6 x 16

3шт.

Выбрано товаров: 27
