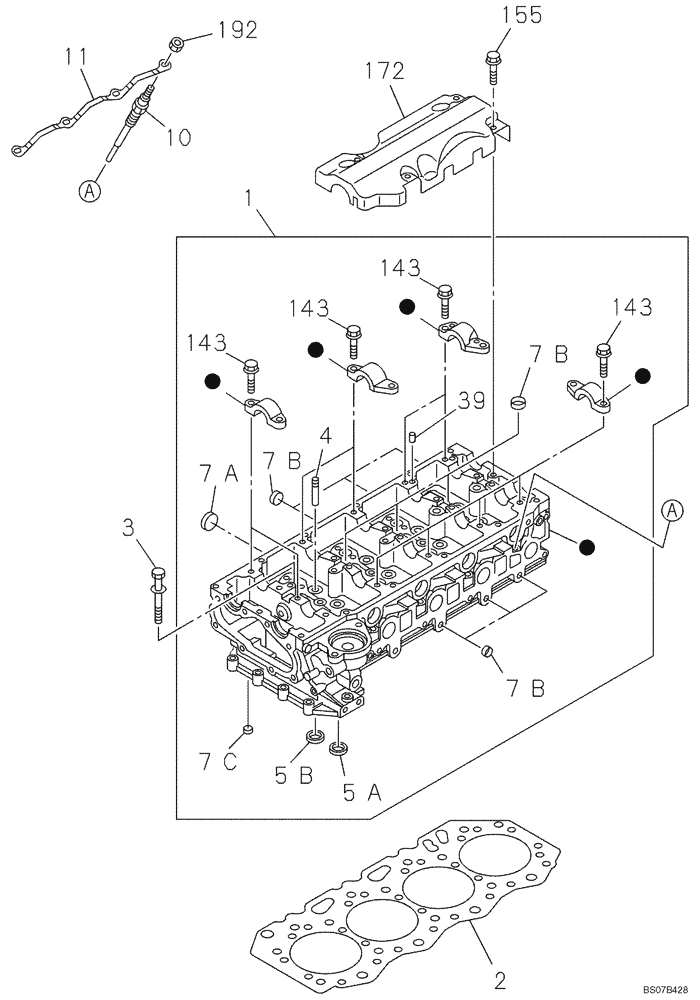

Запчасти Case CX130B (02-10) - CYLINDER HEAD (02) - ENGINE

1-

87595392

CYLINDER HEAD

Incl. 4, 5A, 5B, 7A - 7C, 39, 143; Also See Figure 02-11

1шт.

1a

47607724R

REMAN-CYLINDER HEAD

Complete With Valves

1шт.

1a

47607724C

CORE-CYLINDER HEAD

Return Number

1шт.

2

87595394

GASKET,1.05mm Thk

T=1.05 ONE NOTCH

1шт.

2

87595407

GASKET,1.1mm Thk

T=1.10 TWO NOTCHES

1шт.

2

87595412

GASKET,1.15mm Thk

T=1.15 THREE NOTCHES

1шт.

3

87595413

BOLT

18шт.

4

87595424

VALVE GUIDE

16шт.

5a

87595425

SEAT, VALVE

8шт.

5b

87595431

SEAT, VALVE

8шт.

7a

87384455

CUPEL

2шт.

7b

76609741

PLUG

13шт.

7c

87595433

CUPEL

7шт.

10

438043A1

HEATER COIL

4шт.

11

87595811

ELEC CONNECTOR

1шт.

39

87595819

DOWEL

20шт.

143

87595822

BOLT

20шт.

155

87595825

BOLT

4шт.

172

87595827

PLATE

1шт.

192

87595807

NUT

4шт.
