Запчасти Case CX130B (09-02) - TURNTABLE (09) - CHASSIS/ATTACHMENTS

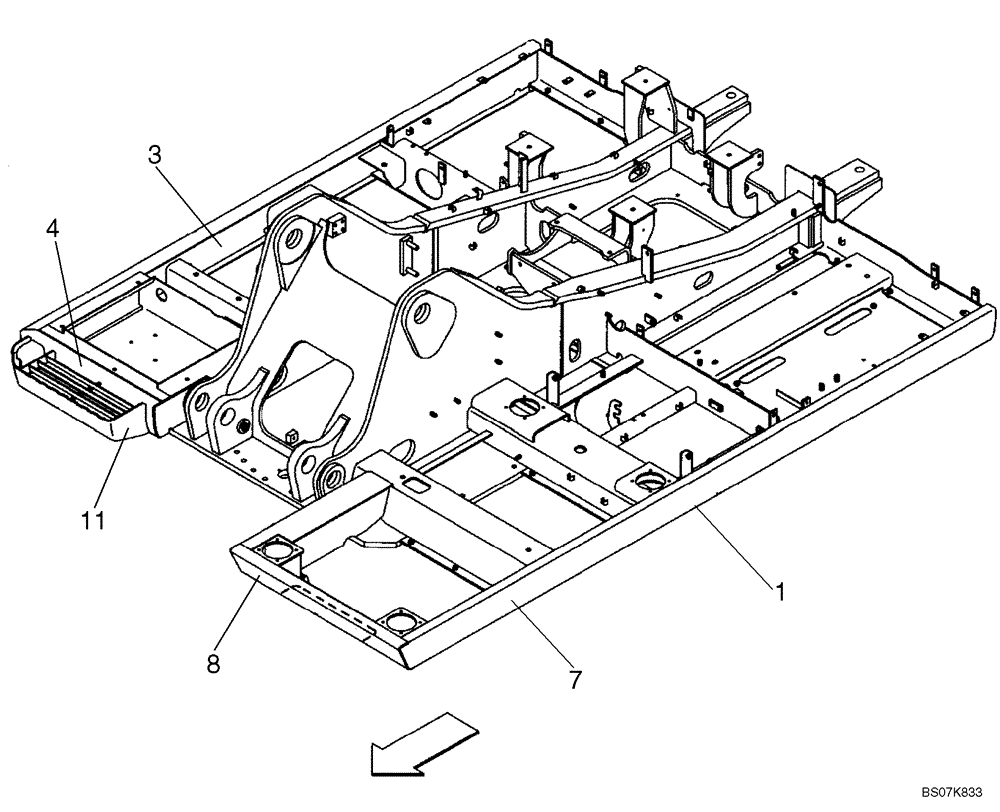

Схема запчастей Case CX130B - (09-02) - TURNTABLE (09) - CHASSIS/ATTACHMENTS
4
8
11
7
3
1

Артикул

Название

Примечание

Количество

1

KNB12430

FRAME

Revolving, P.I.N. N7EAD1001 TO 1003

1шт.

1

KNB12700

FRAME

Revolving, P.I.N. N7EAD1101 AND N7SAD1101

1шт.

1

KNB13460

FRAME

For ROPS Cab Only

1шт.

3

KBB11100

SIDE MEMBER,3510mm L

PLATE FORMED, RIGHT SIDE, May Need To Be Cut To Length

1шт.

4

KRB10330

SIDE MEMBER

PLATE FORMED, RIGHT FRONT, May Need To Be Cut To Length

1шт.

7

KBB11060

SIDE MEMBER,4098mm L

PLATE FORMED, LEFT SIDE, May Need To Be Cut To Length

1шт.

8

KRB12700

SIDE MEMBER

PLATE FORMED, LEFT FRONT

1шт.

11

KNB11320

STEP

1шт.

Выбрано товаров: 8
