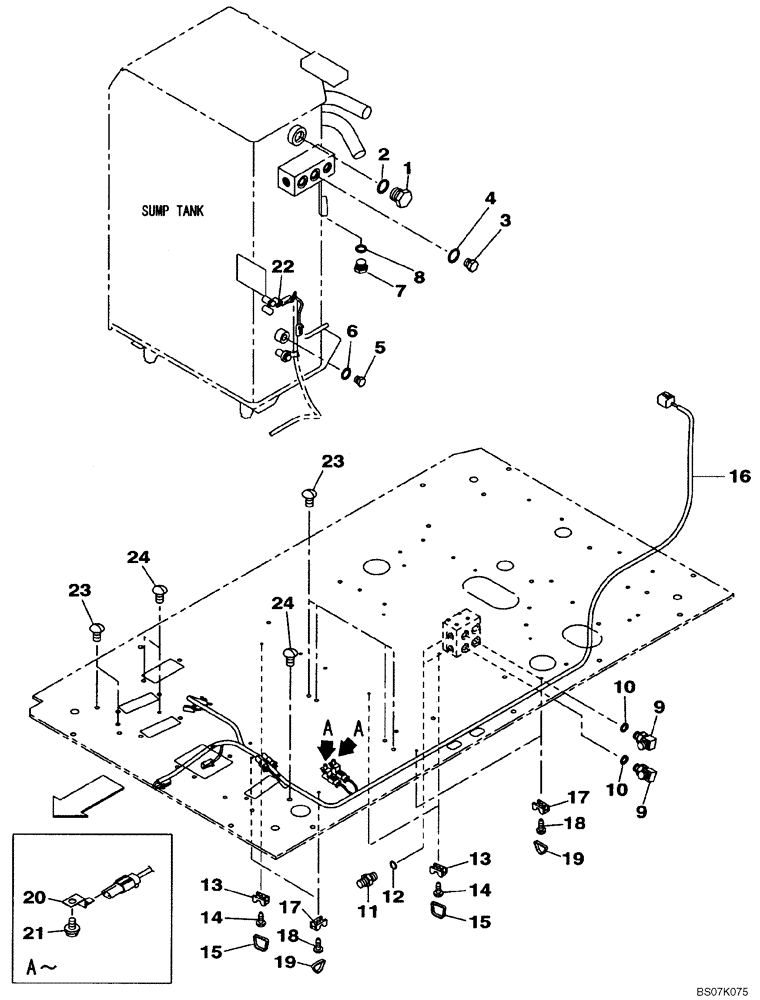

Запчасти Case CX130B (08-99[02]) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF - WITH DOZER BLADE (08) - HYDRAULICS

1

152824A1

ADAPTER

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

159085A1

PLUG

Incl. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

159002A1

PLUG

Incl. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

159002A1

PLUG

Incl. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 10

2шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 12

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

150860A1

COLLAR

3шт.

14

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

15

150496A1

MOUNTING CLIP

3шт.

16

KHR19160

WIRE HARNESS

1шт.

17

150860A1

COLLAR

5шт.

18

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

19

150496A1

MOUNTING CLIP

5шт.

20

158962A1

CLIP

2шт.

21

166345A1

BOLT

2шт.

22

KHR16740

WIRE HARNESS

1шт.

23

KHJ15060

CAP

4шт.

24

KHJ15080

CAP

4шт.
