(08-88) - HYDRAULICS - BLADE, DOZER

Запчасти Case CX130B (08-88) - HYDRAULICS - BLADE, DOZER (08) - HYDRAULICS

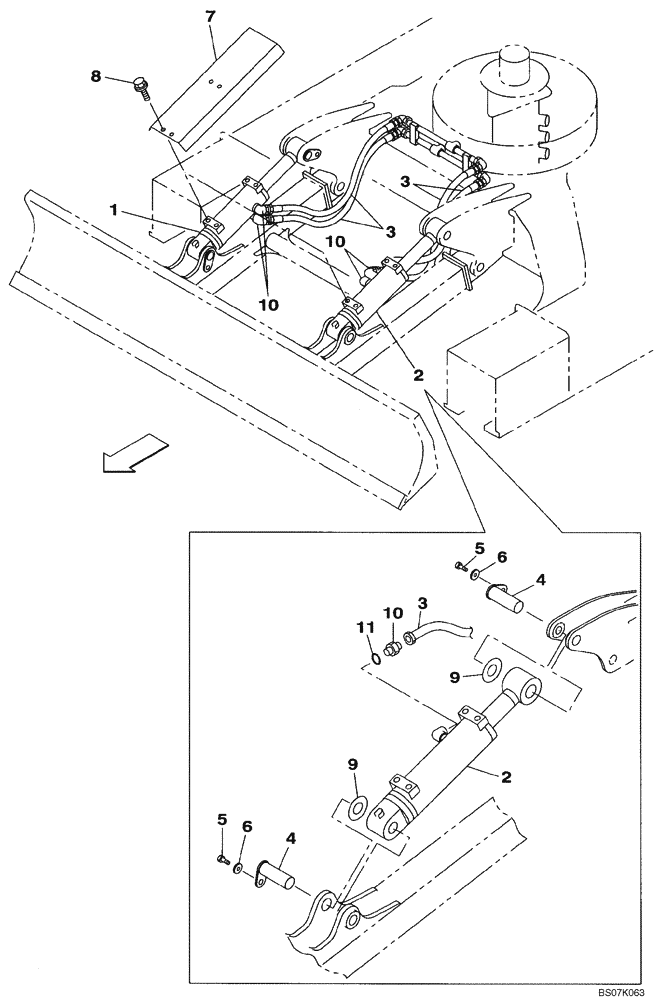

Схема запчастей Case CX130B - (08-88) - HYDRAULICS - BLADE, DOZER (08) - HYDRAULICS
11
1
2
2
8
10
5
4
6
3
9
4
3
3
7
10
10
6
9
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

168636A1

HYDRAULIC CYLINDER

Blade, Right Hand, See Figure 08-89

1шт.

1

168636A1R

REMAN-HYD CYLINDER

CX130B CRAWLER EXCAVATOR TIER 3, Blade, Right Hand (3/08-)

1шт.

1

168636A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

168637A1

HYDRAULIC CYLINDER

Blade, Left Hand, See Figure 08-99

1шт.

2

168637A1R

REMAN-HYD CYLINDER

CX130B CRAWLER EXCAVATOR TIER 3, Blade, Left Hand (3/08-)

1шт.

2

168637A1C

CORE-HYD CYLINDER

Return Number

1шт.

3

168697A1

HOSE ASSY.

4шт.

4

KNV18020

BUSHING

PIN

4шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

6

157141A1

WASHER

4шт.

7

168699A1

PROTECTOR

2шт.

8

167893A1

BOLT

8шт.

9

166404A1

ADJUSTING PLATE

1шт.

10

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 11

4шт.

11

154475A1

O-RING

1шт.
