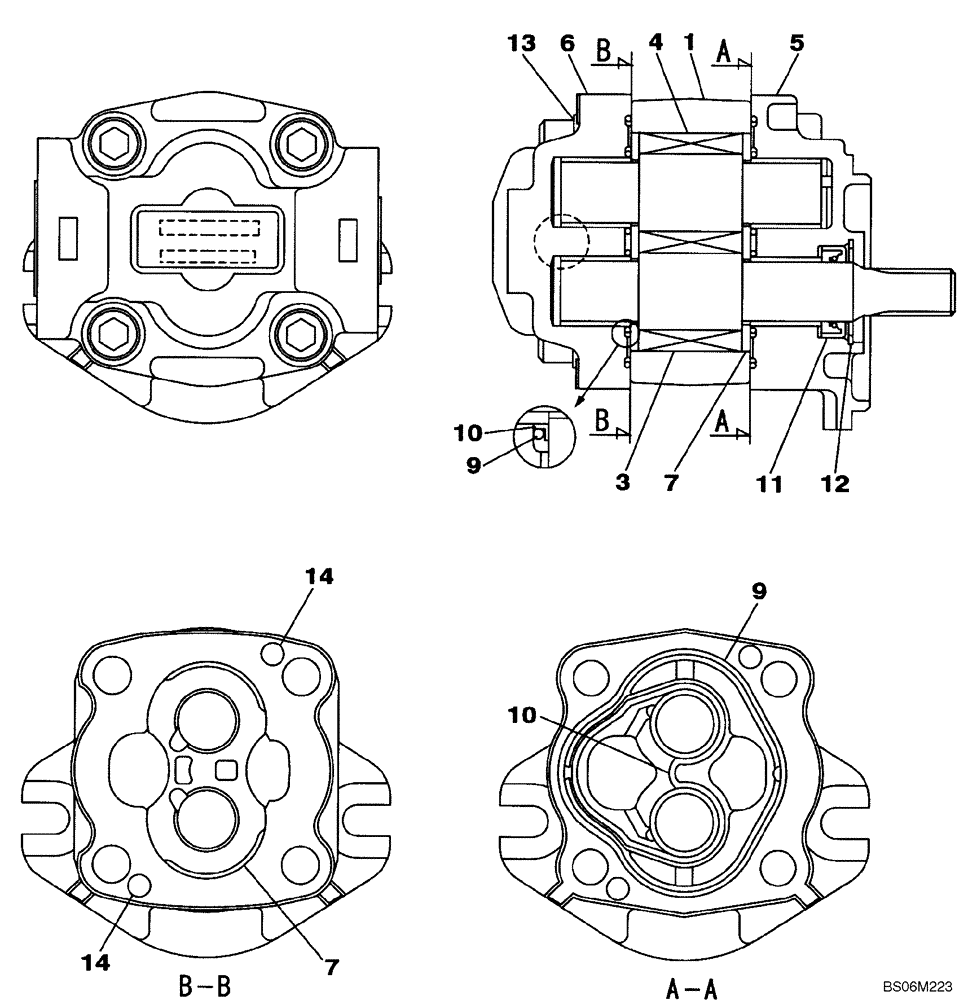

Запчасти Case CX130B (08-87) - GEAR PUMP ASSY (08) - HYDRAULICS

KNJ10650

HYDRAULIC PUMP

Gear, Incl. 1 - 14

1шт.

KNJ10650R

REMAN-HYD PUMP

CX130B CRAWLER EXCAVATOR TIER 3, Gear (3/08-)

1шт.

KNJ10650C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Plate

1шт.

2

LC002960

GEAR SET

Incl. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Gear

1шт.

4

NSS

NOT SOLD SEPARAT

Gear

1шт.

5

LH004940

FLANGE

1шт.

6

LW005070

COVER

1шт.

7

LR015150

PLATE

2шт.

8

LZ008000

REPAIR KIT

Incl. 9 - 12

1шт.

9

LAP0032

SEAL

2шт.

10

LBP0073

BACK-UP RING

2шт.

11

LAP0033

OIL SEAL

1шт.

12

LMP0257

RING

1шт.

13

LA011050

BOLT,Hex Skt Hd

4шт.

14

LA011060

SPECIAL PIN

4шт.
