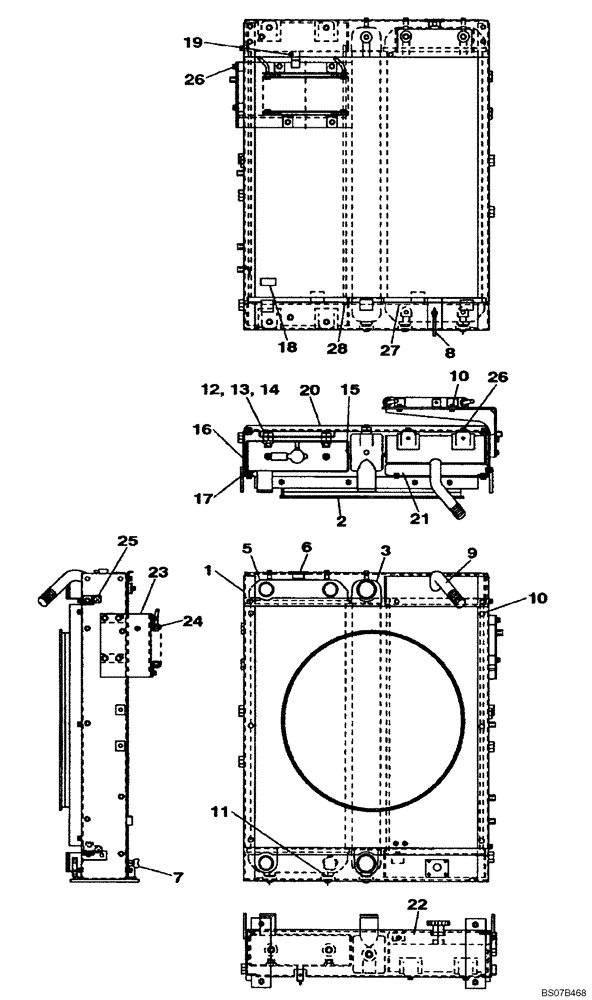

Запчасти Case CX130B (02-06) - RADIATOR ASSY (02) - ENGINE

KNH10450

RADIATOR

Incl. 1 - 28

1шт.

1

LT001670

FRAME

Frame

1шт.

2

LG006180

SHROUD

1шт.

3

LN002010

INTERCOOLER

1шт.

LN002020

RADIATOR

Incl. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Radiator

1шт.

6

LR015830

RADIATOR CAP

Cap

1шт.

7

LK00283

FAUCET

1шт.

8

LK00284

HOSE

1шт.

9

LN002040

OIL COOLER

1шт.

10

LA011210

BOLT,Spcl

Bolt

18шт.

11

LQ000370

RUBBER SEAL

Rubber

3шт.

12

LQ000380

RUBBER SEAL

Rubber

3шт.

13

LH005030

COLLAR

Collar

3шт.

14

LA011220

BOLT,Spcl

Bolt

3шт.

15

LE015320

SEAL PROTECTION

Packing

2шт.

16

TE00881

SEAL PROTECTION

Packing

2шт.

17

LE015330

SEAL PROTECTION

Packing

1шт.

18

LJ015240

FILTER

Filter

2шт.

19

LUG0096

BOLT,Spcl

2шт.

20

LS003460

SUPPORT

Bracket

1шт.

21

LS003470

SUPPORT

Bracket

1шт.

22

LS003480

BRACKET

Bracket

1шт.

23

LS003490

BRACKET

Bracket

1шт.

24

LN002050

FUEL COOLER

1шт.

25

LE015340

SEAL PROTECTION

Packing

2шт.

26

LA011230

BOLT,Spcl

Bolt

8шт.

27

LE015350

SEAL PROTECTION

Packing

2шт.

28

LE015360

SEAL PROTECTION

Packing

1шт.
