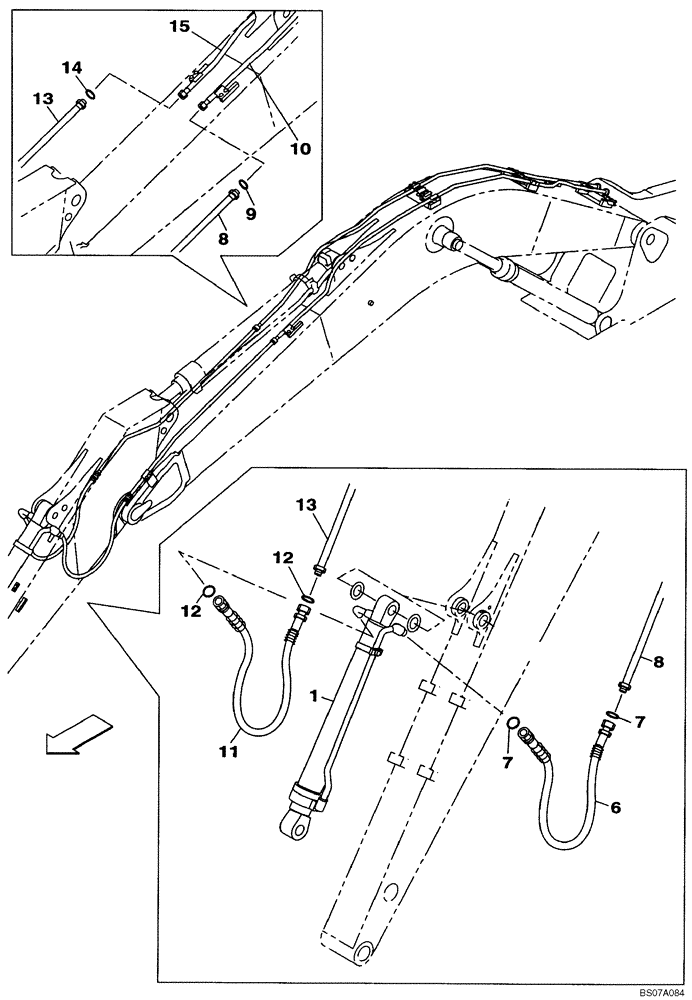

Запчасти Case CX130B (08-71) - HYDRAULICS - BUCKET LINE - LONG ARM (08) - HYDRAULICS
6
8
12
1
14
13
12
7
15
7
9
8
13
10
11
№
Артикул
Название
Примечание
Количество
KNV12541
BUCKET CYLINDER
See Figure 08-86, Replaces KNV12540
1шт.
KNV12541R
REMAN-HYD CYLINDER
See Figure 08-86, Replaces KNV12540
1шт.
KNV12541C
CORE-HYD CYLINDER
Return Number
1шт.
6
KNV17310
HYDRAULIC HOSE,1800.00 mm
Assy
1шт.
7
KHJ1360
O-RING,0.07" Thk x 0.739" ID
2шт.
8
KNV13860Y2
HYD TUBE
1шт.
9
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
10
KNV19310Y2
HYD TUBE
Replaces KNV16800
1шт.
10a
KHJ1348
ADAPTER
Not Shown
1шт.
11
KNV17310
HYDRAULIC HOSE,1800.00 mm
Assy
1шт.
12
KHJ1360
O-RING,0.07" Thk x 0.739" ID
2шт.
13
KNV13870Y2
HYD TUBE
TUBE ASSY.
1шт.
14
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
15
KNV19320Y2
HYD TUBE
Replaces KNV16810
1шт.
Выбрано товаров: 14
