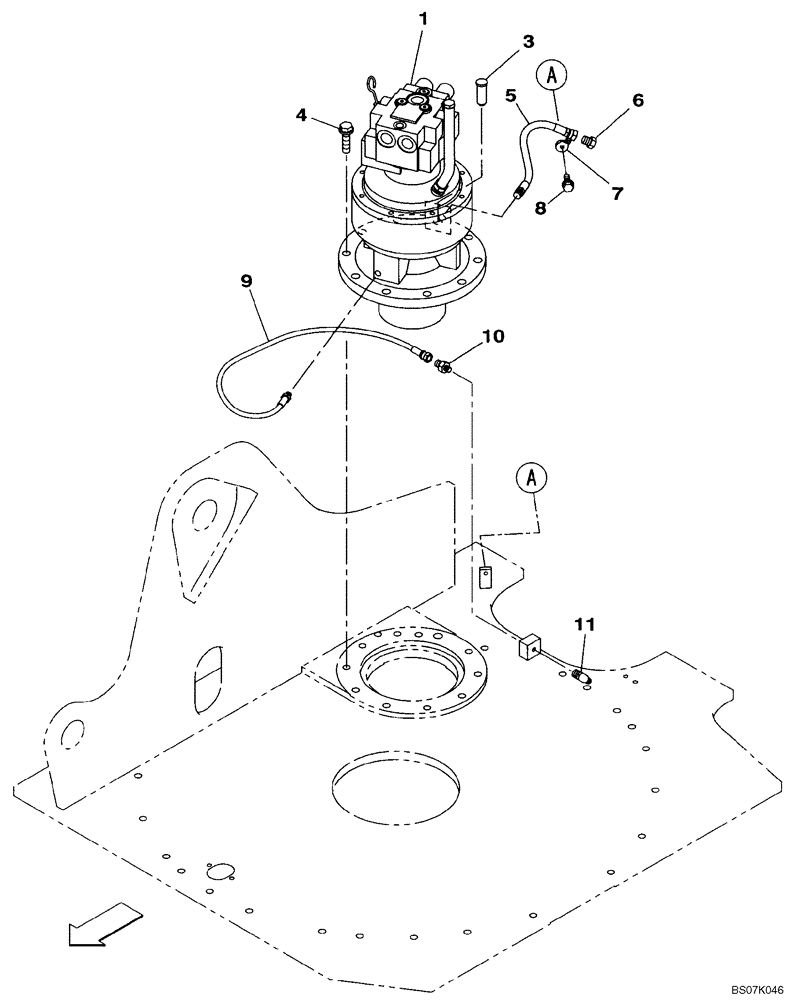

Запчасти Case CX130B (08-51) - SWING MOTOR - MOUNTING (08) - HYDRAULICS

1

KNC10010

MOTO-REDUCTION GEAR

See Fig. 08-51 [01], 08-51 [02]

1шт.

1

KNC10010R

REMAN-MOTO REDUCTION

CX130B CRAWLER EXCAVATOR TIER 3 (3/08-)

1шт.

1

KNC10010C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

3knc10010r

150036A1

HEADED PIN,20mm OD x 60mm L

1шт.

4

167584A1

BOLT,Sems, M16 x 60mm

9шт.

5

KNJ14580

HYDRAULIC HOSE,470.00 mm

1шт.

6

KHP0501

PLUG

1шт.

7

KHR2584

CLAMP

1шт.

8

KHJ1215

BOLT,Spcl

1шт.

9

KHJ17750

HOSE

1шт.

10

KRJ4050

ADAPTER

1шт.

11

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.
