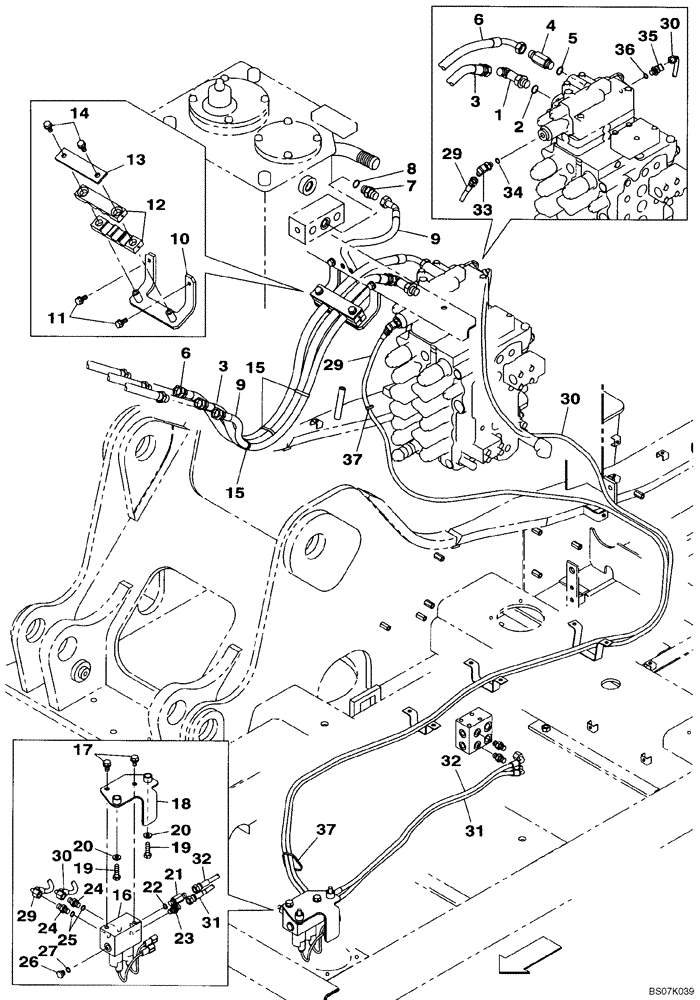

Запчасти Case CX130B (08-44) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

1

KHJ1044

ELBOW

Incl. 2

1шт.

2

154487A1

O-RING

1шт.

3

KNJ13160

HOSE ASSY.

1шт.

4

159361A1

ADAPTER

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

KNJ13170

HOSE ASSY.

1шт.

7

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 8

1шт.

8

154487A1

O-RING

1шт.

9

KNJ13180

HOSE ASSY.

1шт.

10

KNJ13190

SUPPORT

1шт.

11

166052A1

BOLT

2шт.

12

KRJ11580

HOSE CLIP

2шт.

13

KNJ13200

PLATE

1шт.

14

166052A1

BOLT

2шт.

15

150496A1

MOUNTING CLIP

1шт.

16

KHJ14000

VALVE SECTION

1шт.

17

166351A1

BOLT,Sems, M10 x 20mm

2шт.

18

KHJ15190

SUPPORT

1шт.

19

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

20

150409A1

WASHER

2шт.

21

162554A1

FITTING

Incl. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

161841A1

HYD CONNECTOR

1шт.

24

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

159002A1

PLUG

Incl. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

KHJ12230

HYDRAULIC HOSE

1шт.

30

KHJ15170

HYDRAULIC HOSE

1шт.

31

KHJ2088

HOSE

850 mm

1шт.

32

KHJ2088

HOSE

850 mm

1шт.

33

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 34

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

35

150933A1

ELBOW

Incl. 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

150496A1

MOUNTING CLIP

2шт.
