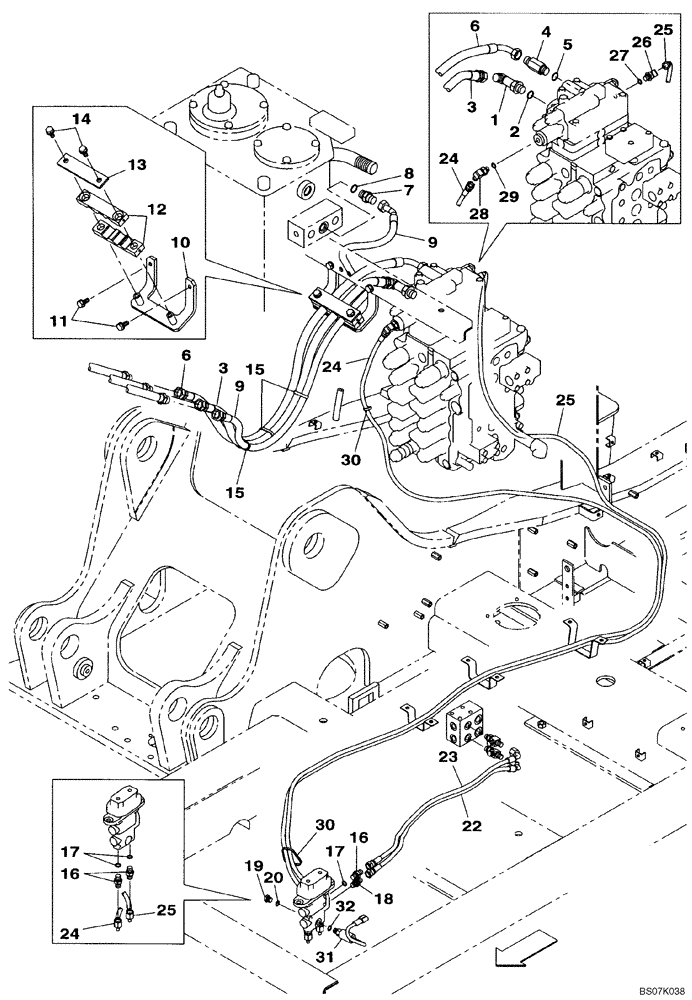

Запчасти Case CX130B (08-43) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

1

KHJ1044

ELBOW

Incl. 2

1шт.

2

154487A1

O-RING

1шт.

3

KNJ13160

HOSE ASSY.

1шт.

4

159361A1

ADAPTER

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

KNJ13170

HOSE ASSY.

1шт.

7

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 8

1шт.

8

154487A1

O-RING

1шт.

9

KNJ13180

HOSE ASSY.

1шт.

10

KNJ13190

SUPPORT

1шт.

11

166052A1

BOLT

2шт.

12

KRJ11580

HOSE CLIP

2шт.

13

KNJ13200

PLATE

1шт.

14

166052A1

BOLT

2шт.

15

150496A1

MOUNTING CLIP

3шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 17

3шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

161841A1

HYD CONNECTOR

1шт.

19

159002A1

PLUG

Incl. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

KHJ2088

HOSE

850 mm

1шт.

23

KHJ2088

HOSE

850 mm

1шт.

24

KHJ15170

HYDRAULIC HOSE

1шт.

25

KHJ18020

HOSE

1шт.

26

150933A1

ELBOW

Incl. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

150496A1

MOUNTING CLIP

2шт.

31

KHR10820

PRESSURE SWITCH

Incl. 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
