(02-02) - ENGINE OIL SUPPLY LINES

Запчасти Case CX130B (02-02) - ENGINE OIL SUPPLY LINES (02) - ENGINE

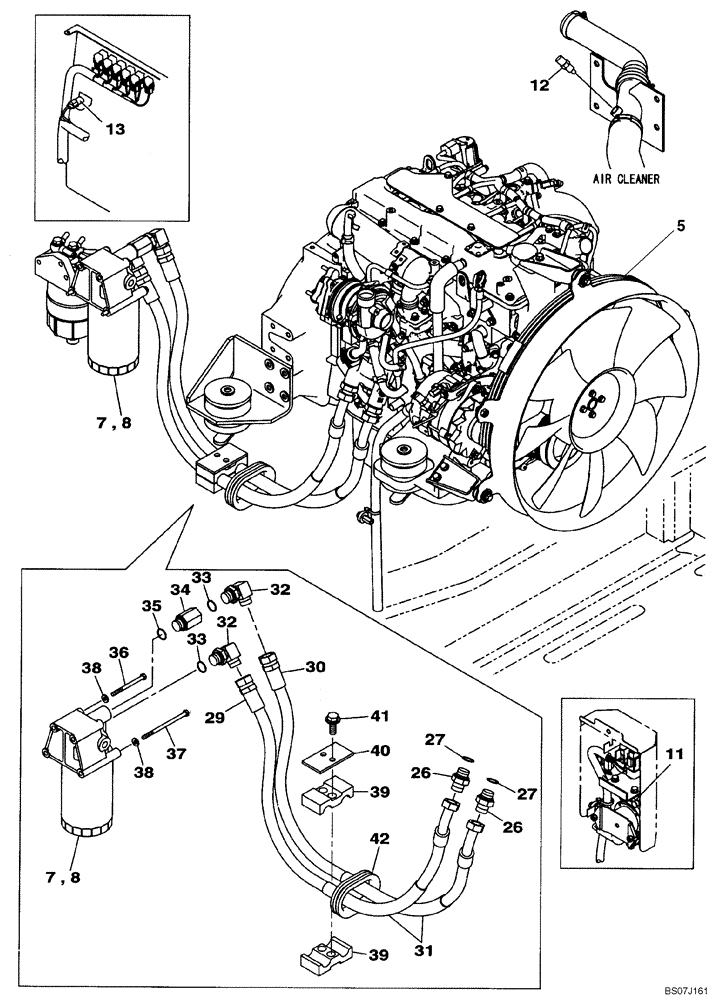

Схема запчастей Case CX130B - (02-02) - ENGINE OIL SUPPLY LINES (02) - ENGINE
35
30
31
27
37
8
26
41
8
33
13
34
39
5
11
12
38
32
29
32
38
26
36
7
42
27
40
33
39
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5

87588086

BELT

Fan

1шт.

7

87365563

FILTER ASSY

FILTER, Oil

1шт.

8

87379813

ENGINE OIL FILTER

ELEMENT, Oil Filter

1шт.

11

150070A1

RELAY

Magnetic Switch

1шт.

12

KHH0535

SENSOR

Air Cleaner

1шт.

13

KHH0536

SENSOR

1шт.

26

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 27

2шт.

27

154503A1

O-RING

1шт.

29

KLH10210

HYDRAULIC HOSE,19.00 mm ID x 1250.00 mm

Oil

1шт.

30

KLH10220

HYDRAULIC HOSE,19.00 mm ID x 1350.00 mm

Oil Line

1шт.

31

157862A1

PLASTIC-RUBBER TUBE

(Replaces KBR0819)

2шт.

32

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 33

2шт.

33

154503A1

O-RING

1шт.

34

152012A1

ELEC CONNECTOR

Incl. 35

1шт.

35

154503A1

O-RING

1шт.

36

102R008Y110R

BOLT

M8X110

2шт.

37

KHH0515

BOLT

M8X140

2шт.

38

153081A1

WASHER

4шт.

39

KRH10200

COLLAR

2шт.

40

KRH10210

PLATE

1шт.

41

166052A1

BOLT

M10X25

2шт.

42

KNJ2988

RUBBER SEAL

1шт.
